MPM3808 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
POWER MANAGEMENT MODULES 5.5V, 3A, SYNCHRONOUS STEP-DOWN MODULE
| Part | Voltage - Input (Min) [Min] | Package / Case | Voltage - Output 1 | Mounting Type | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] | Number of Outputs | Voltage - Input (Max) [Max] | Type | Qualification | Applications | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Regulator Topology | Contents | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output | Utilized IC / Part | Frequency - Switching | Main Purpose | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 2.5 V | 15-PowerLFQFN Module | 1.2 V | Surface Mount Wettable Flank | Automotive | -40 C | 150 °C | 3 mm | 0.16 " | 0.12 in | 1.6 mm | 4 mm | 0.06 " | 3 A | 1 | 5.5 V | Non-Isolated PoL Module | AEC-Q100 | ITE (Commercial) | |||||||||||||

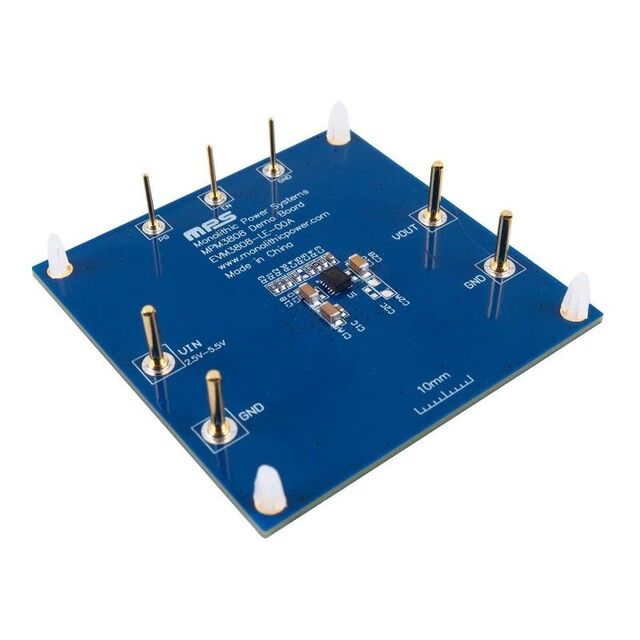

 Monolithic Power Systems Inc. | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) Cable(s) | Buck | Board Cable | 5.5 V | 2.5 V | 3 A | MPM3808-AEC1 | 2.4 MHz | DC/DC Step Down | 1.2 V | |||||||||||||||||||
Monolithic Power Systems Inc. | 2.5 V | 15-PowerLFQFN Module | 1.8 V | Surface Mount Wettable Flank | Automotive | -40 C | 150 °C | 3 mm | 0.16 " | 0.12 in | 1.6 mm | 4 mm | 0.06 " | 3 A | 1 | 5.5 V | Non-Isolated PoL Module | AEC-Q100 | ITE (Commercial) |
