NPTC102 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

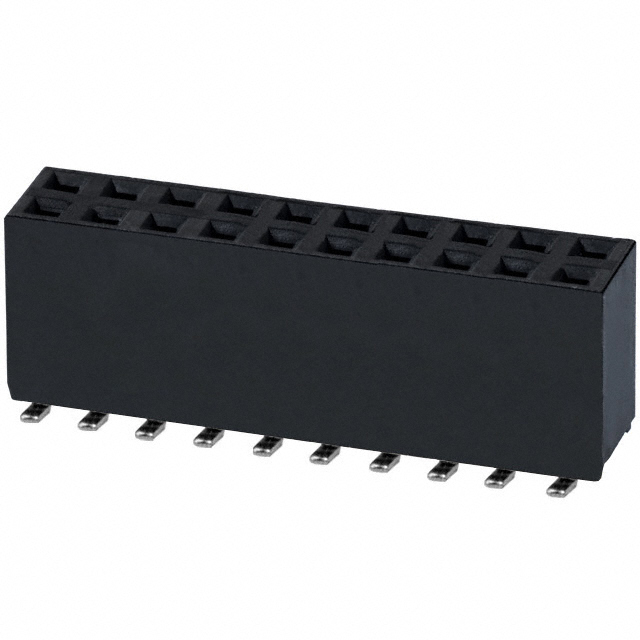

CONN HDR 20POS 0.1 TIN SMD
| Part | Contact Shape | Insulation Material | Contact Material | Number of Positions Loaded | Material Flammability Rating | Termination | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows [custom] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Type | Number of Positions | Mounting Type | Insulation Height [z] | Insulation Height | Fastening Type | Insulation Color | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | All | UL94 V-0 | Solder | Tin | 125 °C | -40 C | 2 | 0.1 in | 2.54 mm | Header | 0.1 " | 2.54 mm | 250 V | Female Socket | 20 | Surface Mount | 0.299 " | 7.6 mm | Push-Pull | Black | 3 A |
