033W Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 4.38"L X 3.25"W

Part	Area (L x W)	Area (L x W)	Weight	Weight	Design	Features	Ratings	Material Flammability Rating	Container Type	Height [z]	Height [z]	Material	Thickness	Thickness	Color

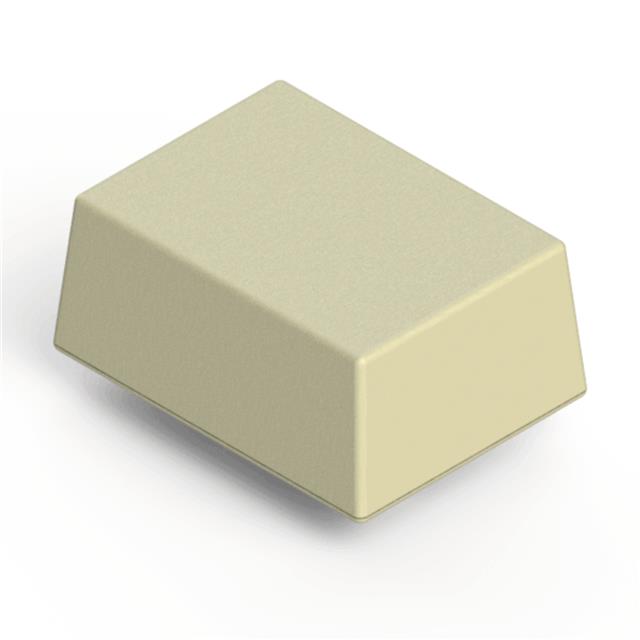

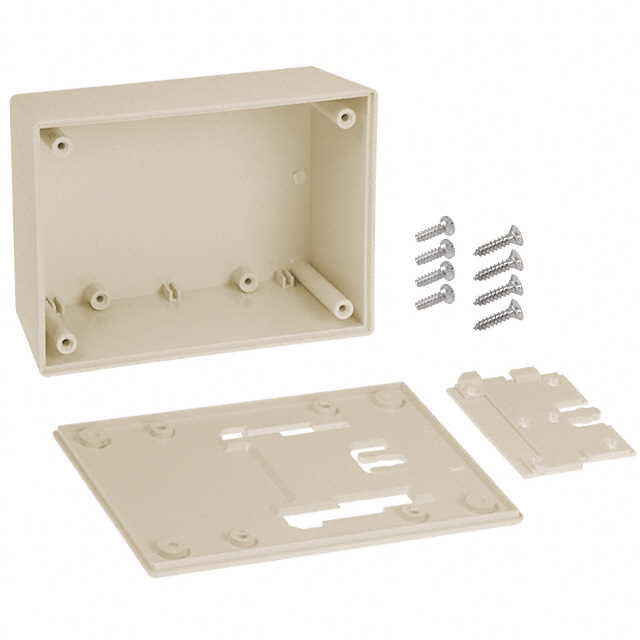

Serpac 033W,AL	14.2 in²	92 cm˛	99.79 g	0.22 lb	Cover Included Hand Held	PCB Supports Wall Mount	IP40 NEMA 1	UL94 HB	Box	1.9 in	48.26 mm	ABS Plastic	2.54 mm	0.1 in	Almond

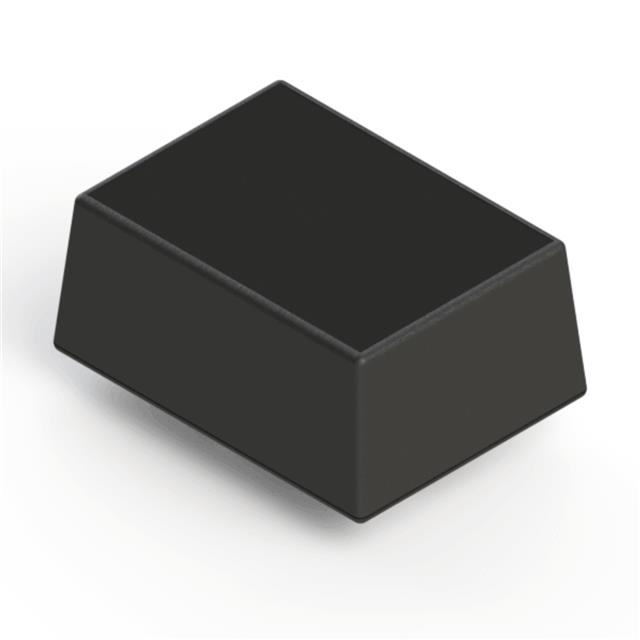

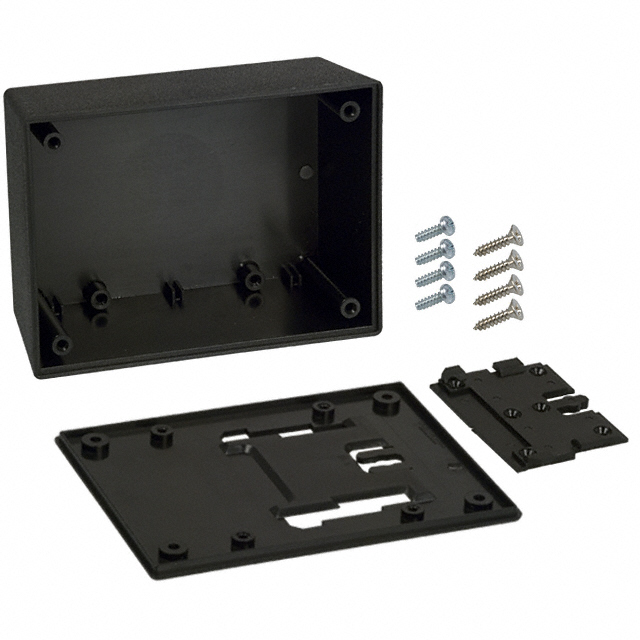

Serpac 033WI,BK	14.2 in²	92 cm˛	99.79 g	0.22 lb	Cover Included Hand Held	PCB Supports Wall Mount	IP40 NEMA 1	UL94 HB	Box	1.9 in	48.26 mm	ABS Plastic	2.54 mm	0.1 in	Black
Serpac 033WI,AL	14.2 in²	92 cm˛	99.79 g	0.22 lb	Cover Included Hand Held	PCB Supports Wall Mount	IP40 NEMA 1	UL94 HB	Box	1.9 in	48.26 mm	ABS Plastic	2.54 mm	0.1 in	Almond

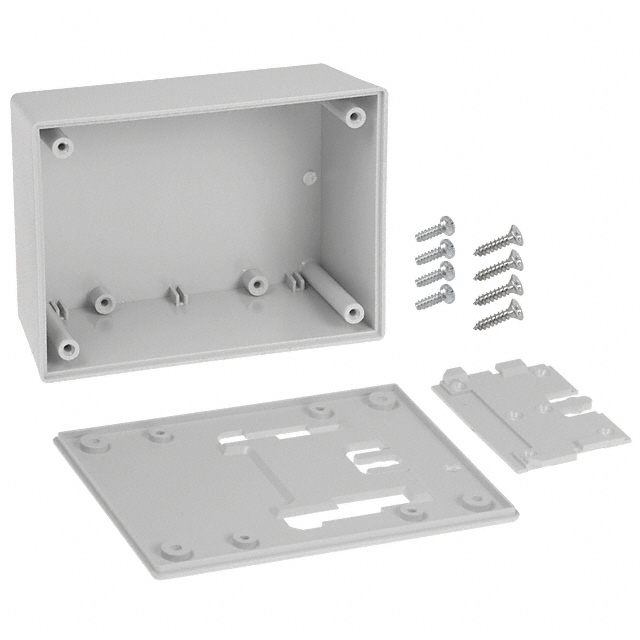

Serpac 033WI,GY	14.2 in²	92 cm˛	99.79 g	0.22 lb	Cover Included Hand Held	PCB Supports Wall Mount	IP40 NEMA 1	UL94 HB	Box	1.9 in	48.26 mm	ABS Plastic	2.54 mm	0.1 in	Gray

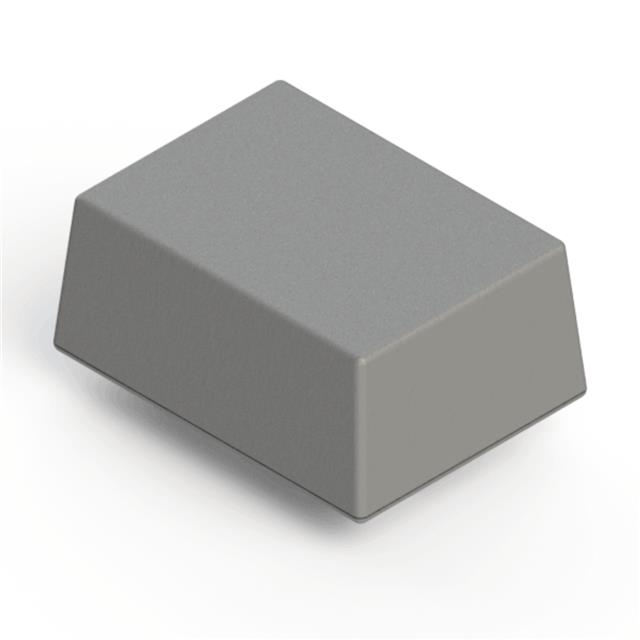

Serpac 033W,GY	14.2 in²	92 cm˛	99.79 g	0.22 lb	Cover Included Hand Held	PCB Supports Wall Mount	IP40 NEMA 1	UL94 HB	Box	1.9 in	48.26 mm	ABS Plastic	2.54 mm	0.1 in	Gray
