1941/3F Series
Manufacturer: ALPHA WIRE
Beta
⌘K

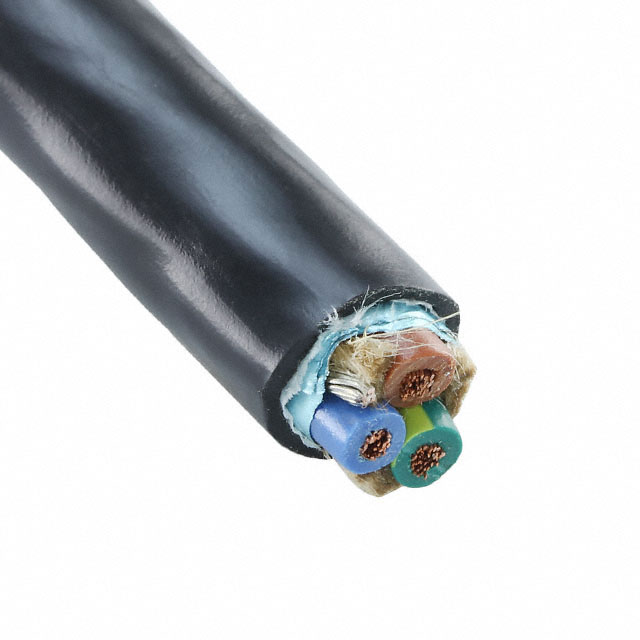

CABLE 3COND 18AWG BLK SHLD 250'
| Part | Shield Coverage | Shield Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Number of Conductors | Jacket Color | Voltage | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Length | Length | Wire Gauge | Conductor Material | Cable Type | Features | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Foil | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 3 | Black | 300 VDC | 100 ft | 30.5 m | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | 3.05 m 15.24 m 76.2 m | 10 ft 50 ft 250 ft | 18 AWG | Copper Bare | Multi-Conductor | Drain Wire | 41 | 34 | 0.314 in | 7.98 mm |
