BUK7J1R4-40H Series

N-channel 40 V, 1.4 mΩ standard level MOSFET in LFPAK56E

Manufacturer: Freescale Semiconductor - NXP

Catalog

N-channel 40 V, 1.4 mΩ standard level MOSFET in LFPAK56E

Part	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Qualification	Package / Case	Vgs(th) (Max) @ Id	Vgs (Max) [Max]	Vgs (Max) [Min]	Technology	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	FET Type	Power Dissipation (Max) [Max]	Grade	Supplier Device Package	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]

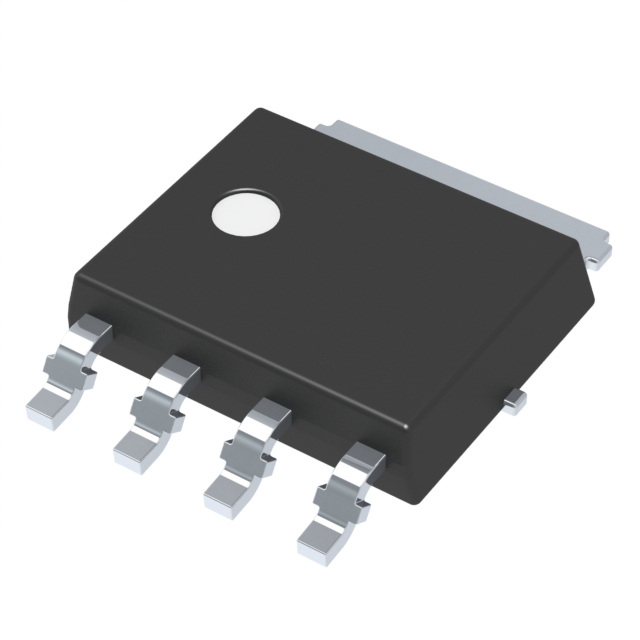

Freescale Semiconductor - NXP BUK7J1R4-40HX	10 V	120 A	AEC-Q101	SOT-1023 4-LFPAK	3.6 V	20 V	-10 V	MOSFET (Metal Oxide)	1.4 mOhm	126 nC	40 V	N-Channel	395 W	Automotive	LFPAK56 Power-SO8	Surface Mount	8155 pF	-55 °C	175 ░C

Catalog

N-channel 40 V, 1.4 mΩ standard level MOSFET in LFPAK56E

Description

Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in an enhanced LFPAK56E package. This product has been fully designed and qualified to meet AEC-Q101 requirements delivering high performance and endurance.
