19.05MM Series

Manufacturer: 3M (TC)

Catalog

THERM PAD 19.05MMX19.05MM 1=25PK

Part	Shelf Life	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Color	Adhesive	Thermal Resistivity	Outline [x]	Outline [y]	Thickness	Thickness	Type	Shape	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Backing, Carrier	Thermal Conductivity
3M (TC) 5590H05-SQ-19.05(25)	24 Months	Date of Manufacture	25 °C	20 °C	Acrylic Elastomer	Gray	Tacky - Both Sides	0.46 °C/W	19.05 mm	19.05 mm	0.0197 "	0.5 mm	Interface Pad Sheet	Square

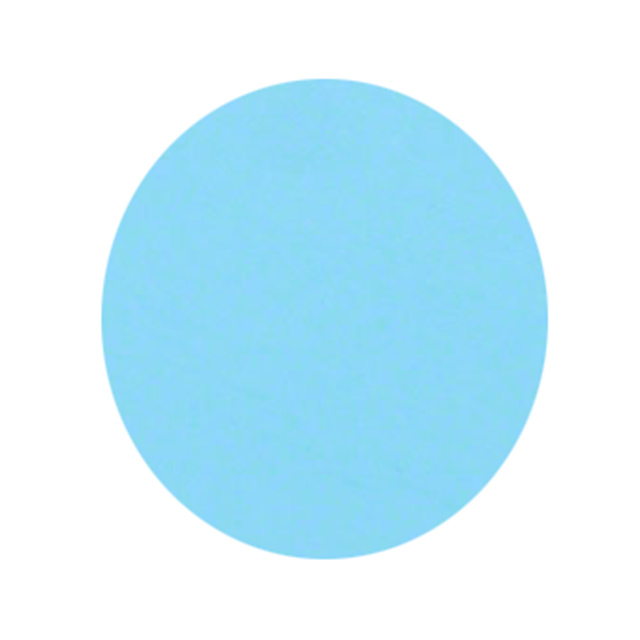

3M (TC) 19.05MMOD-8MMID-25-8810	24 Months	Date of Manufacture			Acrylic	White	Adhesive - Both Sides		19.05 mm	8 mm			Transfer Tape	Round	22 °C	72 °F	Polyester	0.6 W/m-K

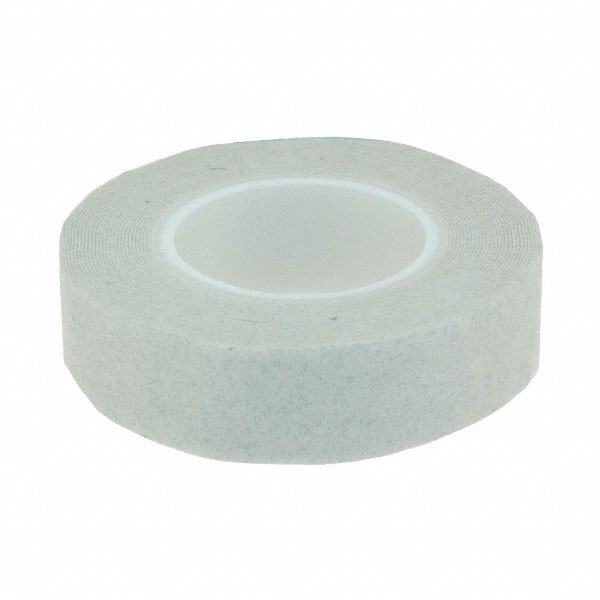

3M (TC) 5590H-05-19.05-5	24 Months	Date of Manufacture	25 °C	20 °C	Acrylic Elastomer	Gray	Tacky - Both Sides	0.46 °C/W	5 m	19.05 mm	0.0197 "	0.5 mm	Interface Pad Roll	Rectangular
3M (TC) 8810-19.05-13.21(25)	24 Months	Date of Manufacture			Acrylic	White	Adhesive - Both Sides		19.05 mm	13.21 mm			Transfer Tape	Rectangular	22 °C	72 °F	Polyester	0.6 W/m-K
3M (TC) 8810-19.05-6.35(25)	24 Months	Date of Manufacture			Acrylic	White	Adhesive - Both Sides		19.05 mm	6.35 mm			Transfer Tape	Rectangular	22 °C	72 °F	Polyester	0.6 W/m-K
3M (TC) 19.05MM-28.45MM-25-8815	24 Months	Date of Manufacture			Acrylic	White	Adhesive - Both Sides		28.45 mm	19.05 mm	0.0148 "	0.375 mm	Transfer Tape	Rectangular	22 °C	72 °F	Polyester	0.6 W/m-K
3M (TC) 19.05MM-14.47MM-25-8810	24 Months	Date of Manufacture			Acrylic	White	Adhesive - Both Sides		19.05 mm	14.47 mm			Transfer Tape	Rectangular	22 °C	72 °F	Polyester	0.6 W/m-K
3M (TC) 8815-19.05-19.05(25)	24 Months	Date of Manufacture			Acrylic	White	Adhesive - Both Sides		19.05 mm	19.05 mm	0.0148 "	0.375 mm	Transfer Tape	Square	22 °C	72 °F	Polyester	0.6 W/m-K
3M (TC) 19.05MM-13.21MM-25-5590H-05	24 Months	Date of Manufacture	25 °C	20 °C	Acrylic Elastomer	Gray	Tacky - Both Sides	0.46 °C/W	19.05 mm	13.21 mm	0.0197 "	0.5 mm	Interface Pad Sheet	Rectangular
3M (TC) 19.05MM-28.45MM-25-5590H-05	24 Months	Date of Manufacture	25 °C	20 °C	Acrylic Elastomer	Gray	Tacky - Both Sides	0.46 °C/W	28.45 mm	19.05 mm	0.0197 "	0.5 mm	Interface Pad Sheet	Rectangular
