228FMVA Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Illumination Type, Color	Actuator Type	Mounting Type	Termination Style	Mechanical Life	Actuator Height off PCB, Vertical	Outline [y]	Outline [x]	Switch Travel	Circuit	Contact Rating @ Voltage	Actuator Orientation	Illumination Voltage (Nominal)

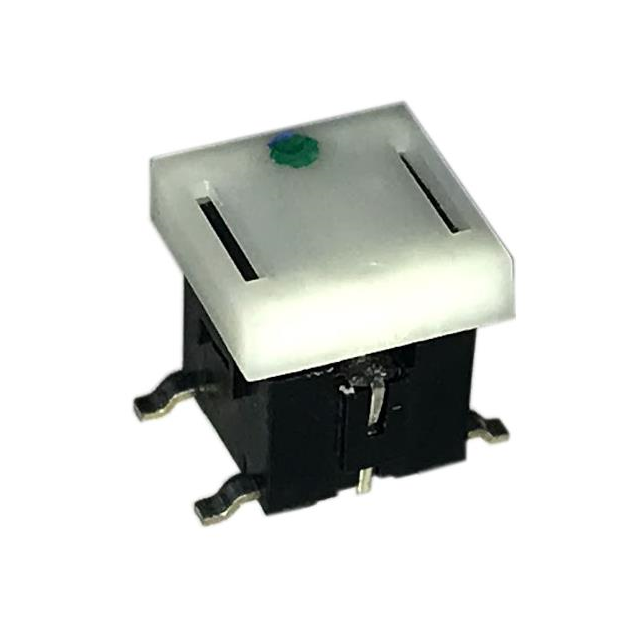

Tusonix a Subsidiary of CTS Electronic Components 228FMVABBR	Illuminated	-20 C	70 °C	Off-Mom	Blue LED	Square Button	Surface Mount	Gull Wing	100000 Cycles	7.7 mm	7.5 mm	7.5 mm	0.25 mm	SPST-NO	0.05 A 12 VDC	Top Actuated
Tusonix a Subsidiary of CTS Electronic Components 228FMVAABR	Illuminated	-20 C	70 °C	Off-Mom	Amber LED	Plunger for Cap	Surface Mount	Gull Wing	100000 Cycles	7.7 mm	7.5 mm	7.5 mm	0.25 mm	SPST-NO	0.05 A 12 VDC	Top Actuated	2 VDC
Tusonix a Subsidiary of CTS Electronic Components 228FMVARBR	Illuminated	-20 C	70 °C	Off-Mom	Blue/Red LED	Plunger for Cap	Surface Mount	Gull Wing	100000 Cycles	7.7 mm	7.5 mm	7.5 mm	0.25 mm	SPST-NO	0.05 A 12 VDC	Top Actuated	2.1 VDC 3.2 VDC
