R16417 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

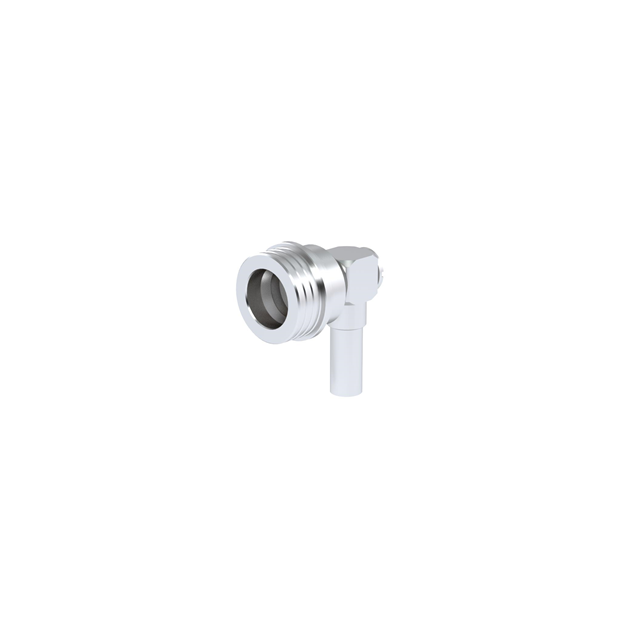

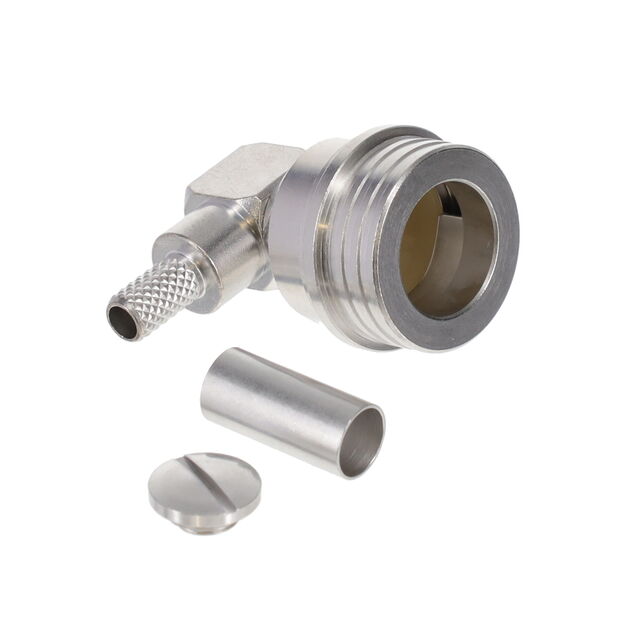

QN / RIGHT ANGLE PLUG CRIMP TYPE
| Part | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Dielectric Material | Body Finish | Number of Ports | Ingress Protection | Connector Style | Fastening Type | Shield Termination | Housing Color | Contact Termination | Center Contact Material | Impedance | Cable Group | Cable Group | Mounting Type | Connector Type | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Silver | -55 C | 125 °C | Brass | 500 V | Polytetrafluoroethylene (PTFE) | White Bronze | 1 | IP68 - Dust Tight Waterproof | QN | Snap-On | Crimp | Silver | Crimp | Brass | 50 Ohms | RG-58 | 141 | Free Hanging (In-Line) Right Angle | Plug Male Pin | 6000 MHz |
 Radiall USA, Inc. | Silver | -55 C | 125 °C | Brass | 850 V | Polytetrafluoroethylene (PTFE) | White Bronze | 1 | IP68 - Dust Tight Waterproof | QN | Snap-On | Crimp | Silver | Crimp | Brass | 50 Ohms | 223 400 RG-142 | Free Hanging (In-Line) Right Angle | Plug Male Pin | 6000 MHz | |
 Radiall USA, Inc. | Silver | -55 C | 125 °C | Brass | 850 V | Polytetrafluoroethylene (PTFE) | White Bronze | 1 | IP68 - Dust Tight Waterproof | QN | Snap-On | Crimp | Silver | Crimp | Brass | 50 Ohms | 223 400 RG-142 | Free Hanging (In-Line) Right Angle | Plug Male Pin | 6000 MHz |
