ATE2D Series

Catalog

TOGGLE SWITCH, DPDT, 0.05A, 60VAC, TH

Part	Electrical Life	Bushing Thread	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Mounting Type	Illumination	Switch Function	Actuator Type	Features	Actuator Length [x]
Nidec Components Corporation ATE2D-2M3-10-Z	50000 Cycles	Unthreaded	50 mA	48 V	48 V	85 °C	-20 ░C	DPDT	PC Pin	Through Hole	Non-Illuminated	On-On	Standard Round	Washable	6 mm
Nidec Components Corporation ATE2D-2F3-10-Z	50000 Cycles	Unthreaded	50 mA	48 V	48 V	85 °C	-20 ░C	DPDT	PC Pin	Through Hole	Non-Illuminated	On-On	Flatted	Washable	10 mm

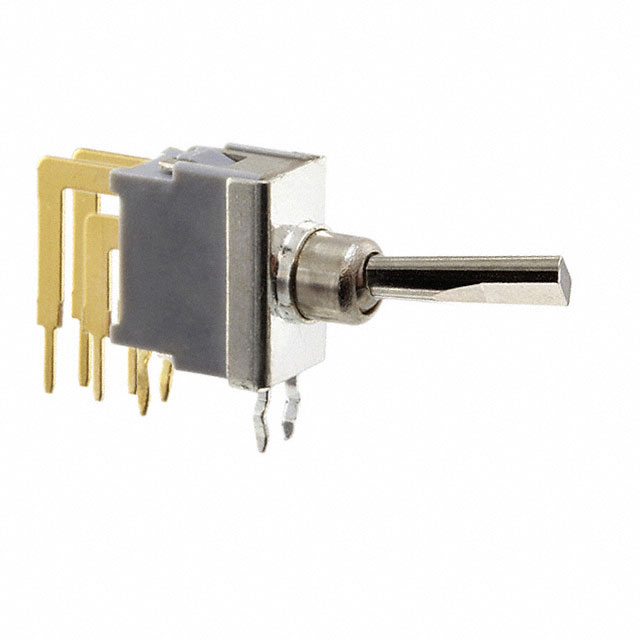

Nidec Components Corporation ATE2D-7F3-10-Z	50000 Cycles	Unthreaded	50 mA	48 V	48 V	85 °C	-20 ░C	DPDT	PC Pin	Right Angle Through Hole Vertical	Non-Illuminated	On-On	Flatted	Washable	10 mm
Nidec Components Corporation ATE2D-5M3-10-Z	50000 Cycles	Unthreaded	50 mA	48 V	48 V	85 °C	-20 ░C	DPDT	PC Pin	Right Angle Through Hole	Non-Illuminated	On-On	Standard Round	Washable	6 mm

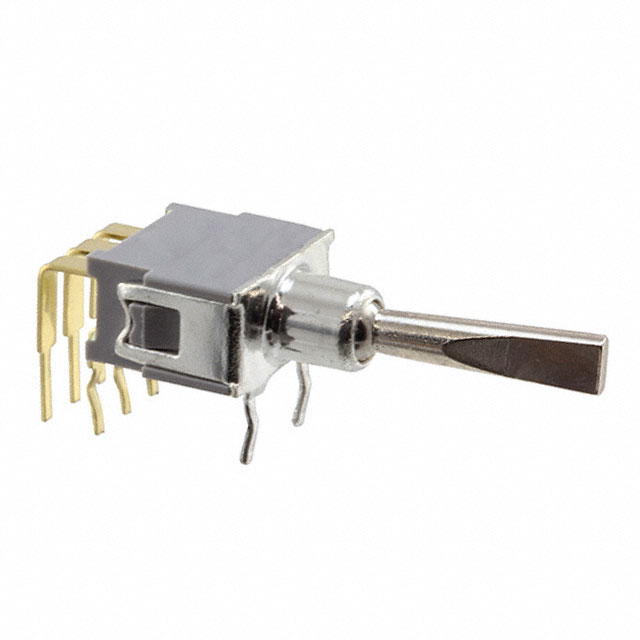

Nidec Components Corporation ATE2D-5F3-10-Z	50000 Cycles	Unthreaded	50 mA	48 V	48 V	85 °C	-20 ░C	DPDT	PC Pin	Right Angle Through Hole	Non-Illuminated	On-On	Flatted	Washable	10 mm
Nidec Components Corporation ATE2D-6M3-10-Z	50000 Cycles	Unthreaded	50 mA	48 V	48 V	85 °C	-20 ░C	DPDT	PC Pin	Right Angle Through Hole	Non-Illuminated	On-On	Standard Round	Washable	6 mm
