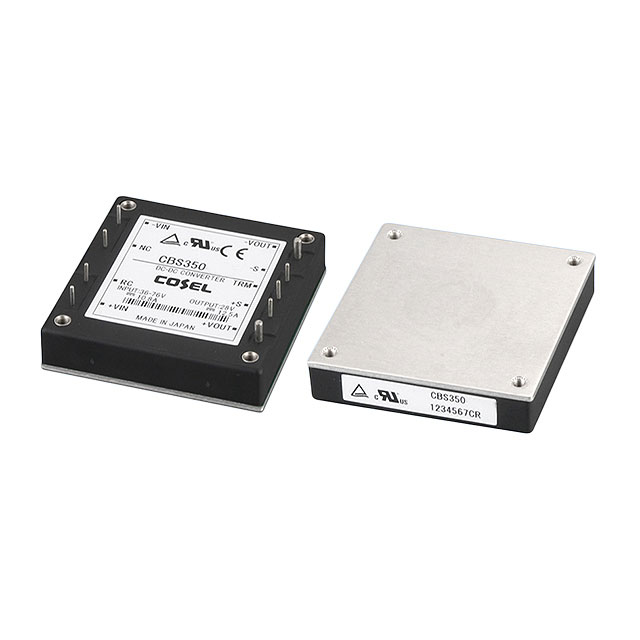

CBS3502412 Series

Catalog

DC DC CONVERTER 12V 300W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Output 1	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Applications	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Type	Supplier Device Package	Voltage - Input (Min) [Min]	Package / Case	Mounting Type	Features
Cosel USA, Inc. CBS3502412-RT	-40 °C	100 °C	300 W	12 V	86 %	36 V	1	ITE (Commercial)	25 A	1.5 kV	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Isolated Module	Half Brick	20 V	Half Brick	Through Hole	OCP OVP Remote On/Off
Cosel USA, Inc. CBS3502412-R	-40 °C	100 °C	300 W	12 V	86 %	36 V	1	ITE (Commercial)	25 A	1.5 kV	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Isolated Module	Half Brick	20 V	Half Brick	Through Hole	OCP OVP Remote On/Off
Cosel USA, Inc. CBS3502412-T	-40 °C	100 °C	300 W	12 V	86 %	36 V	1	ITE (Commercial)	25 A	1.5 kV	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Isolated Module	Half Brick	20 V	Half Brick	Through Hole	OCP OVP Remote On/Off
