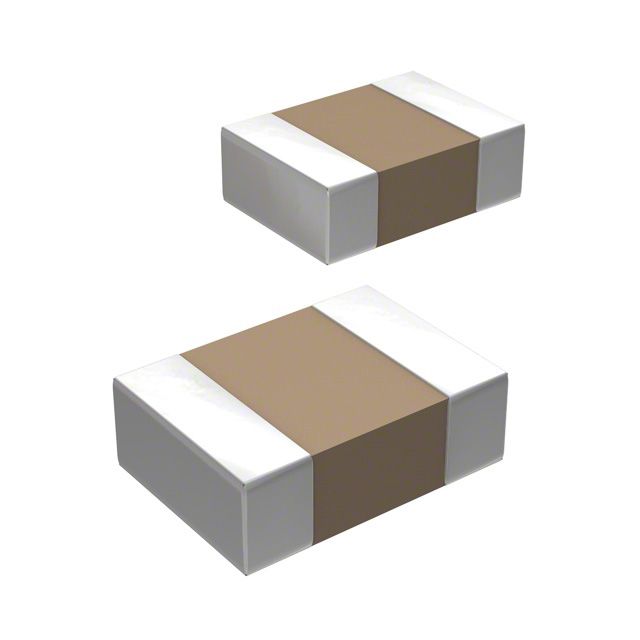

CF453215 Series

Catalog

FIXED IND 6.8UH 285MA 1.2OHM SMD

Part	Mounting Type	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Material - Core	Inductance Frequency - Test	Type	Inductance	Q @ Freq	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Bourns Inc. CF453215-6R8K	Surface Mount	27 MHz	1.2 Ohm	10 %	0.067 in	1.7 mm	1812 (4532 Metric)	Ferrite	7.96 MHz	Multilayer	6.8 µH	7.96 MHz 50	285 mA	-55 C	125 °C	Shielded	0.177 in	4.5 mm	3.2 mm	0.126 in
Bourns Inc. CF453215-5R6K	Surface Mount	33 MHz	1.1 Ohm	10 %	0.067 in	1.7 mm	1812 (4532 Metric)	Ferrite	7.96 MHz	Multilayer	5.6 µH	7.96 MHz 50	0.3 A	-55 C	125 °C	Shielded	0.177 in	4.5 mm	3.2 mm	0.126 in
Bourns Inc. CF453215-2R7K	Surface Mount	50 MHz	750 mOhm	10 %	0.067 in	1.7 mm	1812 (4532 Metric)	Ferrite	7.96 MHz	Multilayer	2.7 µH	7.96 MHz 50	0.37 A	-55 C	125 °C	Shielded	0.177 in	4.5 mm	3.2 mm	0.126 in
