56.34.9 Series

Catalog

RELAY GEN PURPOSE 4PDT 12A 125V

Part	Coil Resistance	Coil Voltage	Approval Agency	Contact Material	Load - Max Switching	Coil Type	Coil Current	Features	Release Time	Contact Form	Mounting Type	Contact Rating (Current)	Termination Style	Termination Style	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Operate Time	Switching Voltage [Max]	Must Operate Voltage
Finder Relays, Inc. 56.34.9.125.0040	14.2 kOhms	125 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Nickel (AgNi)	4800 VA	Non Latching	8.8 mA	Mechanical Indicator Test Button	11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	25 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	100 VDC

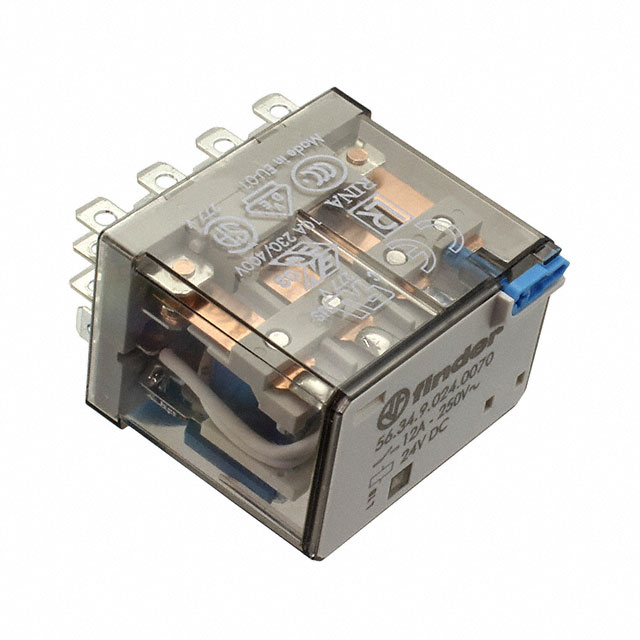

Finder Relays, Inc. 56.34.9.024.0070	490 Ohms	24 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Nickel (AgNi)	4800 VA	Non Latching	49 mA	Lighted Indicator Test Button	11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	4.8 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	19.2 VDC
Finder Relays, Inc. 56.34.9.012.0040	123 Ohms	12 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Nickel (AgNi)	4800 VA	Non Latching	97 mA	Mechanical Indicator Test Button	11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	2.4 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	9.6 VDC
Finder Relays, Inc. 56.34.9.012.0074	123 Ohms	12 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Nickel (AgNi)	4800 VA	Non Latching	97 mA		11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	2.4 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	9.6 VDC
Finder Relays, Inc. 56.34.9.024.0060	490 Ohms	24 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Nickel (AgNi)	4800 VA	Non Latching	49 mA	Lighted Indicator	11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	4.8 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	19.2 VDC
Finder Relays, Inc. 56.34.9.024.0000T	490 Ohms	24 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Nickel (AgNi)	4800 VA	Non Latching	49 mA		11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	4.8 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	19.2 VDC
Finder Relays, Inc. 56.34.9.110.0000	10.4 kOhms	110 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Nickel (AgNi)	4800 VA	Non Latching	10.5 mA		11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	22 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	88 VDC
Finder Relays, Inc. 56.34.9.024.4040	490 Ohms	24 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Tin Oxide (AgSnO)	4800 VA	Non Latching	49 mA	Mechanical Indicator Test Button	11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	4.8 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	19.2 VDC
Finder Relays, Inc. 56.34.9.012.0000	123 Ohms	12 VDC	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	Silver Nickel (AgNi)	4800 VA	Non Latching	97 mA		11 ms	4PDT (4 Form C)	Socketable	12 A	0.187 in 4.7 mm	Plug In Quick Connect	2.4 VDC	70 °C	-40 C	General Purpose	11 ms	400 VAC	9.6 VDC
