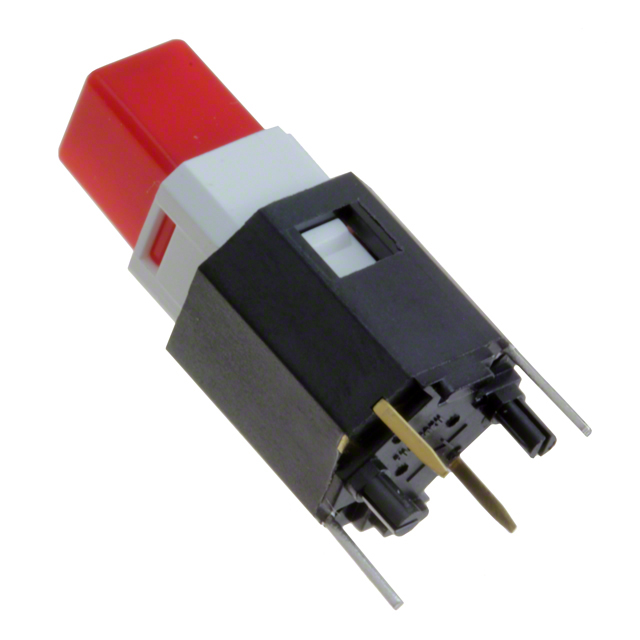

CFPB-1CC Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH PUSH SPST-NO 1MA 20V
| Part | Electrical Life | Actuator Type | Mounting Type | Current Rating (Amps) | Voltage Rating - DC | Actuator Marking | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Type | Circuit | Color - Actuator/Cap | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 300000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Standard | SPST-NO | Orange | ||
 Nidec Components Corporation | 500000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Illuminated Standard | SPST-NO | Red | 2 VDC | LED Red |
 Nidec Components Corporation | 500000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Illuminated Standard | SPST-NO | Yellow | 2.1 VDC | Green LED |
 Nidec Components Corporation | 500000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Standard | SPST-NO | Red | ||
 Nidec Components Corporation | 500000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Illuminated Standard | SPST-NO | White | 2.2 VDC | LED Yellow |
 Nidec Components Corporation | 300000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Illuminated Standard | SPST-NO | Green | 2.1 VDC | Green LED |
 Nidec Components Corporation | 500000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Illuminated Standard | SPST-NO | Orange | 2.2 VDC | LED Orange |
 Nidec Components Corporation | 300000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Standard | SPST-NO | Red | ||
 Nidec Components Corporation | 300000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Standard | SPST-NO | Yellow | ||
 Nidec Components Corporation | 300000 Cycles | Button Square | Through Hole | 1 mA | 20 V | No Marking | PC Pin | -10 °C | 60 °C | Off-Mom | Illuminated Standard | SPST-NO | Blue | 2.1 VDC | Green LED |
