FSI-150 Series

Catalog

CONN STACKING 100POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Features	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board
Samtec Inc. FSI-150-10-L-D-E	10 mm	0.394 in	10 Áin	0.25 Ám	Surface Mount	Gold	Mounting Flange	100	2	0.039 in	1 mm

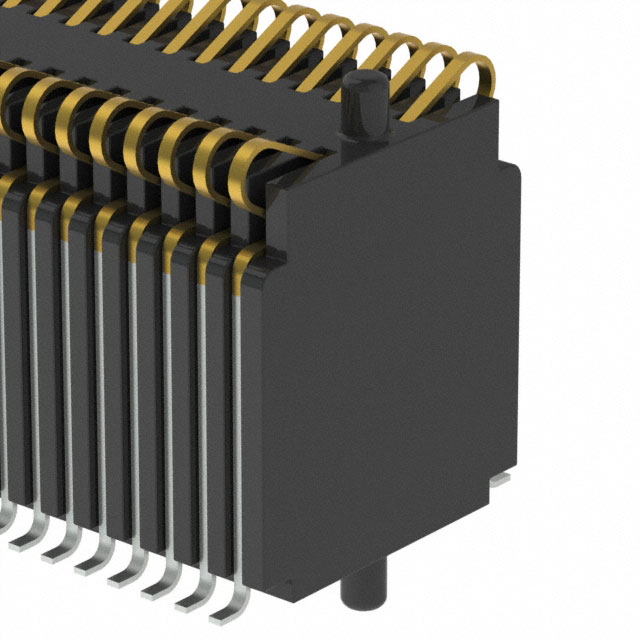

Samtec Inc. FSI-150-10-S-D-AD-P	10 mm	0.394 in	30 Áin	0.76 Ám	Surface Mount	Gold	Board Guide Mating Guide Pick and Place	100	2	0.039 in	1 mm
Samtec Inc. FSI-150-06-L-D-M-AD-K			10 Áin	0.25 Ám	Surface Mount	Gold	Board Guide Mating Guide Mounting Flange Pick and Place	100	2	0.039 in	1 mm	6 mm	0.236 in

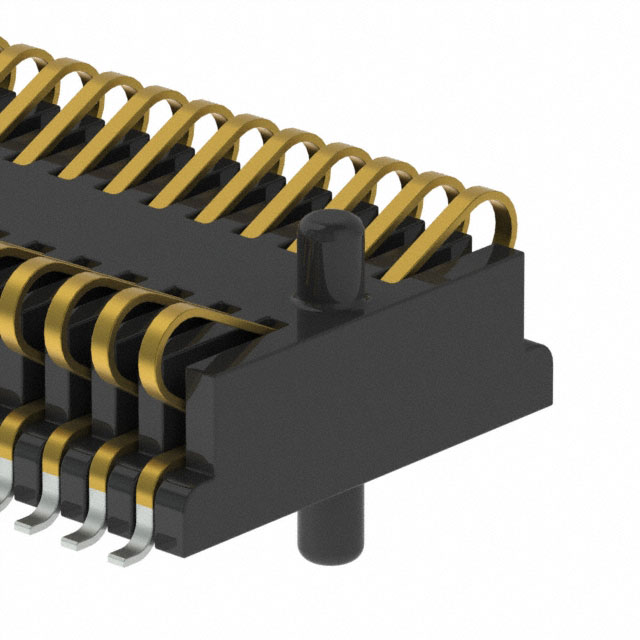

Samtec Inc. FSI-150-03-G-D-AD-K			10 Áin	0.25 Ám	Surface Mount	Gold	Board Guide Mating Guide Pick and Place	100	2	0.039 in	1 mm	3 mm	0.118 in
Samtec Inc. FSI-150-03-G-S-E-AD			10 Áin	0.25 Ám	Surface Mount	Gold	Board Guide Mating Guide Mounting Flange	50	1	0.039 in	1 mm	3 mm	0.118 in
Samtec Inc. FSI-150-10-L-D-AD-P	10 mm	0.394 in	10 Áin	0.25 Ám	Surface Mount	Gold	Board Guide Mating Guide Pick and Place	100	2	0.039 in	1 mm
Samtec Inc. FSI-150-10-S-D-M-AB	10 mm	0.394 in	30 Áin	0.76 Ám	Surface Mount	Gold	Board Guide Mounting Flange	100	2	0.039 in	1 mm
Samtec Inc. FSI-150-03-G-S-M			10 Áin	0.25 Ám	Surface Mount	Gold	Mounting Flange	50	1	0.039 in	1 mm	3 mm	0.118 in
Samtec Inc. FSI-150-10-L-D-AD-M	10 mm	0.394 in	10 Áin	0.25 Ám	Surface Mount	Gold	Board Guide Mating Guide Mounting Flange	100	2	0.039 in	1 mm
Samtec Inc. FSI-150-06-L-S			10 Áin	0.25 Ám	Surface Mount	Gold		50	1	0.039 in	1 mm	6 mm	0.236 in
