MPL-SE4030 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

POWER INDUCTOR (SMD), 10 ΜH, 2.2 A, SEMISHIELDED, 2.4 A, MPL-SE SERIES

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Inductance Frequency - Test	Inductance	Shielding	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Mounting Type	Current - Saturation (Isat)	Current Rating (Amps)
Monolithic Power Systems Inc. MPL-SE4030-100	0.118 "	3 mm	Nonstandard 2 Lead	100 kHz	10 µH	Shielded	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	97 mOhm	Surface Mount	2.4 A	2.2 A
Monolithic Power Systems Inc. MPL-SE4030-4R7	0.118 "	3 mm	Nonstandard 2 Lead	100 kHz	4.7 ÁH	Shielded	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	63 mOhm	Surface Mount	3.7 A	2.6 A
Monolithic Power Systems Inc. MPL-SE4030-2R2	0.118 "	3 mm	Nonstandard 2 Lead	100 kHz	2.2 µH	Shielded	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	30 mOhm	Surface Mount	5.5 A	3.9 A

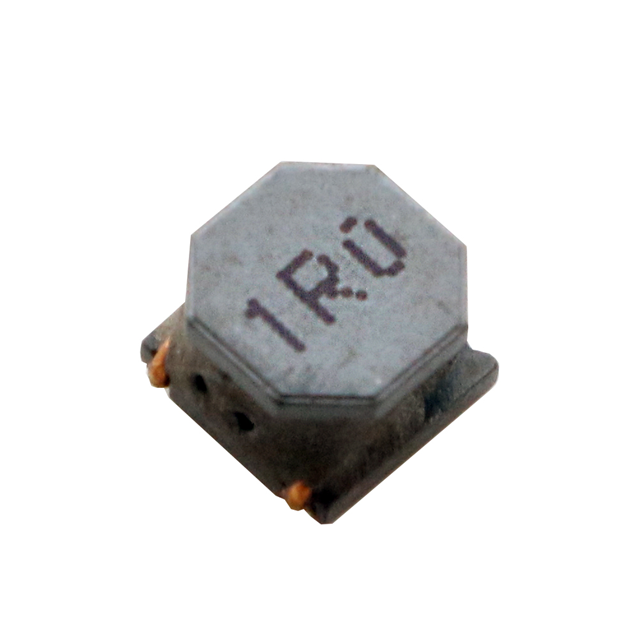

Monolithic Power Systems Inc. MPL-SE4030-3R3	0.118 "	3 mm	Nonstandard 2 Lead	100 kHz	3.3 µH	Shielded	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	39.8 mOhm	Surface Mount	4.1 A	3.45 A
Monolithic Power Systems Inc. MPL-SE4030-220	0.118 "	3 mm	Nonstandard 2 Lead	100 kHz	22 µH	Semi-Shielded Shielded	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	219 mOhm 220 mOhm	Surface Mount	1.51 A 1.65 A	1.3 A 1.5 A
Monolithic Power Systems Inc. MPL-SE4030-150	0.118 "	3 mm	Nonstandard 2 Lead	100 kHz	15 µH	Shielded	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	185 mOhm	Surface Mount	1.95 A	1.6 A
Monolithic Power Systems Inc. MPL-SE4030-1R0	0.118 "	3 mm	Nonstandard 2 Lead	100 kHz	1 µH	Shielded	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	12.5 mOhm	Surface Mount	7.5 A	6.3 A
Monolithic Power Systems Inc. MPL-SE4030-6R8	0.118 "	3 mm	Nonstandard 2 Lead	100 kHz	6.8 µH	Shielded	0.157 "	4 mm	0.157 in	4 mm	125 °C	-40 C	83 mOhm	Surface Mount	3.3 A	2.4 A
