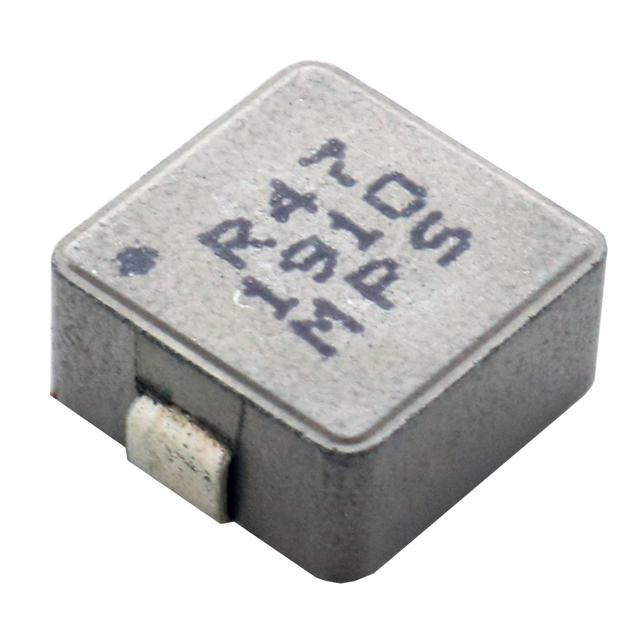

MPL-AY1050 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

FIXED IND 470NH 25A 1.25MOHM SMD

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	DC Resistance (DCR)	Current - Saturation (Isat)	Mounting Type	Inductance	Shielding	Current Rating (Amps)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Monolithic Power Systems Inc. MPL-AY1050-R47	0.197 in	5 mm	100 kHz	1.25 mOhm	41 A	Surface Mount	470 nH	Unshielded	25 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-R68	0.197 in	5 mm	100 kHz	1.75 mOhm	36 A	Surface Mount	0.68 µH	Unshielded	23 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-3R3	0.197 in	5 mm	100 kHz	8 mOhm	17 A	Surface Mount	3.3 µH	Unshielded	12.5 Amps	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-2R2	0.197 in	5 mm	100 kHz	4.9 mOhm	19.5 A	Surface Mount	2.2 µH	Unshielded	15 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-4R7	0.197 in	5 mm	100 kHz	9.5 mOhm	15 A	Surface Mount	4.7 ÁH	Unshielded	11.5 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-100	0.197 in	5 mm	100 kHz	19 mOhm		Surface Mount	10 µH	Unshielded	7.8 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-1R0	0.197 in	5 mm	100 kHz	2.6 mOhm	33 A	Surface Mount	1 µH	Unshielded	19 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-1R5	0.197 in	5 mm	100 kHz		26.5 A	Surface Mount	1.5 µH	Unshielded	17 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-6R8	0.197 in	5 mm	100 kHz	15 mOhm	13 A	Surface Mount	6.8 µH	Unshielded	9 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
Monolithic Power Systems Inc. MPL-AY1050-5R6	0.197 in	5 mm	100 kHz	13 mOhm	14 A	Surface Mount	5.6 µH	Unshielded	9.8 A	2-SMD J-Lead	-40 C	155 C	Molded	0.433 in	0.394 in	10 mm	11 mm
