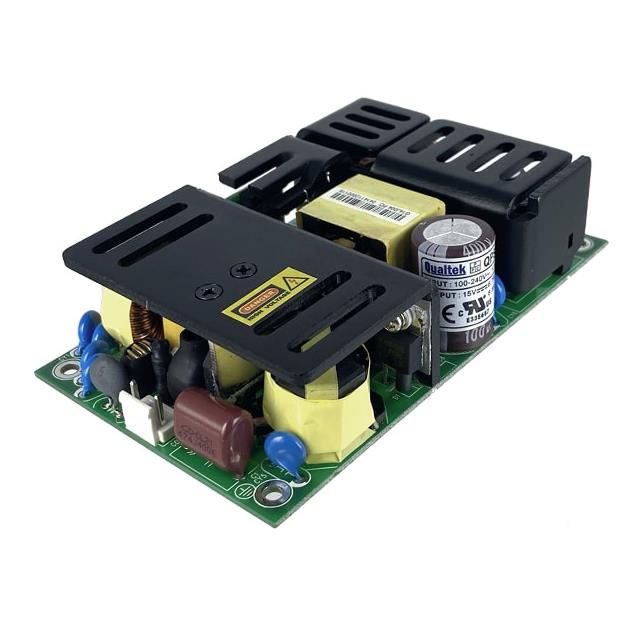

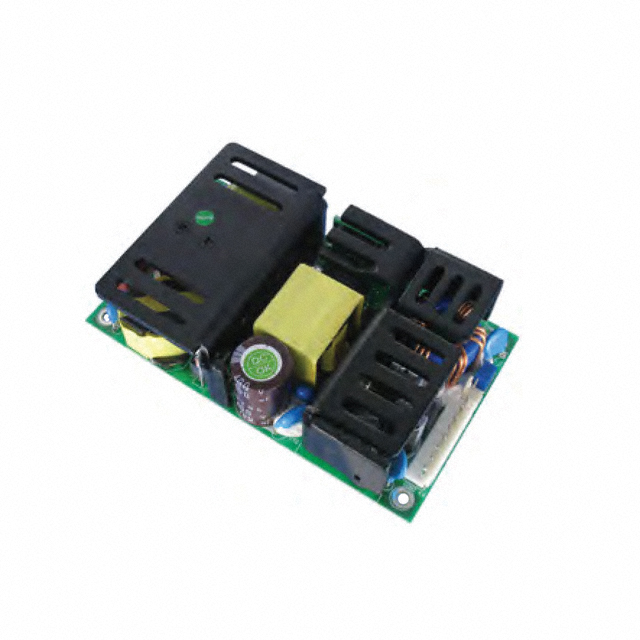

QPSF-125 Series
Manufacturer: Qualtek
Beta
⌘K
AC/DC CONVERTER 28V 125W
| Part | Voltage - Output 1 | Approval Agency | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) | Voltage - Isolation | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Type | Current - Output 1 | Mounting Type | Number of Outputs | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 28 V | CB CE cURus | 87 % | 70 °C | -20 °C | 76 mm | 2.99 in | 1.2 " | 30.5 mm | 127 mm | 5 " | 125 W | 3000 V | ITE (Commercial) | 264 VAC | 90 VAC | Open Frame | 4.5 A | Chassis Mount | 1 | Adjustable Output PFC Remote Sense Universal Input |
 Qualtek | 24 V | CB CE cURus | 88 % | 70 °C | -20 °C | 76 mm | 2.99 in | 1.2 " | 30.5 mm | 127 mm | 5 " | 125 W | 3000 V | ITE (Commercial) | 264 VAC | 90 VAC | Open Frame | 5.2 A | Chassis Mount | 1 | Adjustable Output PFC Remote Sense Universal Input |
Qualtek | 5 V | CB CE cURus | 85 % | 70 °C | -20 °C | 76 mm | 2.99 in | 1.2 " | 30.5 mm | 127 mm | 5 " | 125 W | 3000 V | ITE (Commercial) | 264 VAC | 90 VAC | Open Frame | 20 A | Chassis Mount | 1 | Adjustable Output PFC Remote Sense Universal Input |
Qualtek | 12 V | CB CE cURus | 87 % | 70 °C | -20 °C | 76 mm | 2.99 in | 1.2 " | 30.5 mm | 127 mm | 5 " | 125 W | 3000 V | ITE (Commercial) | 264 VAC | 90 VAC | Open Frame | 10.5 A | Chassis Mount | 1 | Adjustable Output PFC Remote Sense Universal Input |
 Qualtek | 15 V | CB CE cURus | 87 % | 70 °C | -20 °C | 76 mm | 2.99 in | 1.2 " | 30.5 mm | 127 mm | 5 " | 125 W | 3000 V | ITE (Commercial) | 264 VAC | 90 VAC | Open Frame | 8.4 A | Chassis Mount | 1 | Adjustable Output PFC Remote Sense Universal Input |
Qualtek | 48 V | CB CE cURus | 88 % | 70 °C | -20 °C | 76 mm | 2.99 in | 1.2 " | 30.5 mm | 127 mm | 5 " | 125 W | 3000 V | ITE (Commercial) | 264 VAC | 90 VAC | Open Frame | 2.6 A | Chassis Mount | 1 | Adjustable Output PFC Remote Sense Universal Input |
