1744483 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

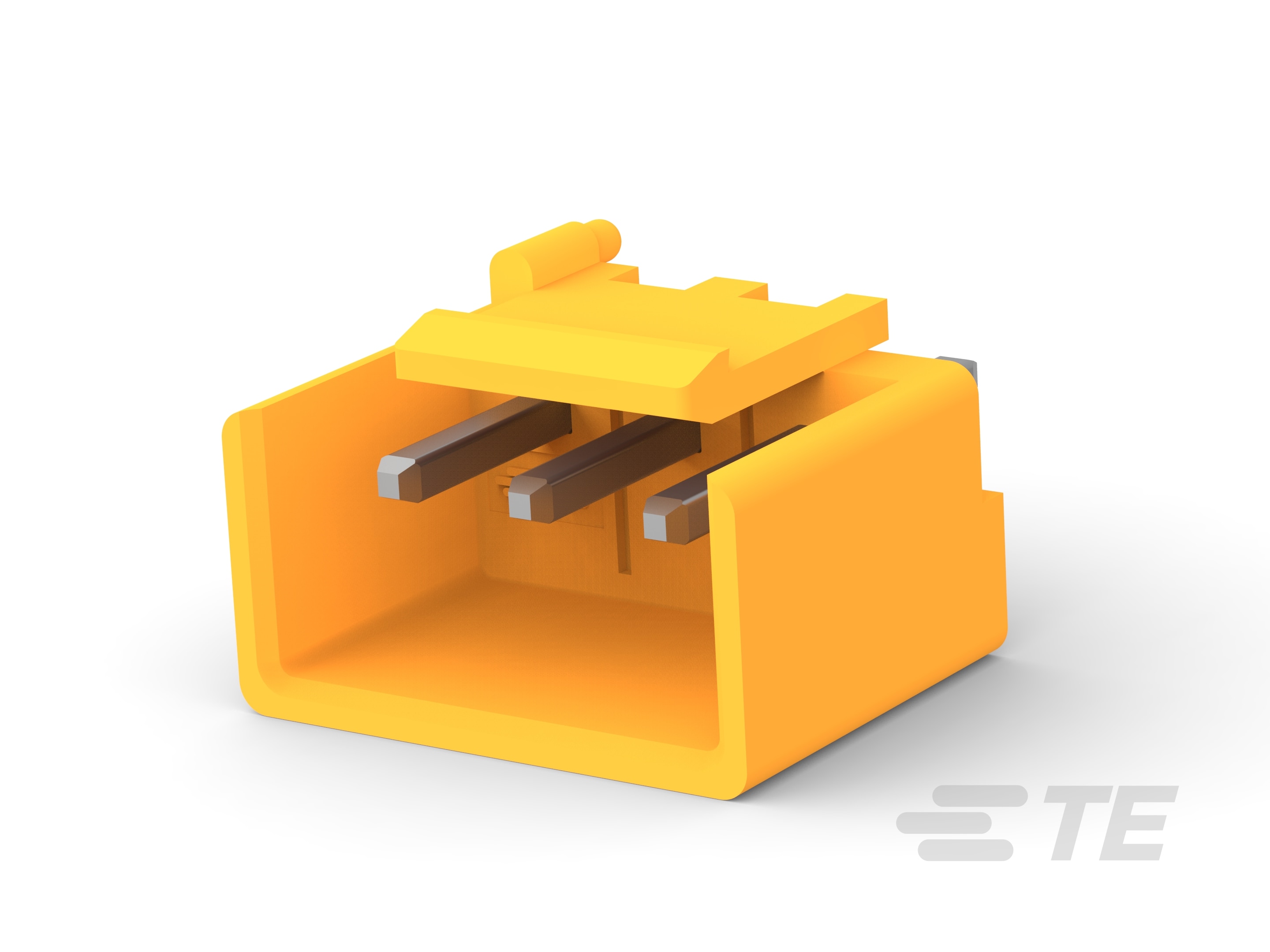

03P EP SHRD HDR ASMY, ORANGE
| Part | Connector Type | Overall Contact Length | Overall Contact Length | Mounting Type | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Number of Rows | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Termination | Voltage Rating | Insulation Material | Shrouding | Contact Length - Mating | Contact Length - Mating | Insulation Color | Contact Finish - Post | Material Flammability Rating | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Contact Length - Post | Contact Length - Post | Contact Shape | Current Rating (Amps) | Fastening Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Header | 14.4 mm | 0.567 " | Through Hole | Board to Cable/Wire | 1 çm | 39.4 çin | Brass | 1 | 0.156 in | 3.96 mm | 105 ░C | -55 °C | Male Pin | Solder | 250 VAC | Polybutylene Terephthalate (PBT) Glass Filled | Shrouded - 4 Wall | 0.306 in | 7.77 mm | Orange | Tin | UL94 V-0 | 0.472 in | 12 mm | All | 1 µm | 39.4 µin | General Purpose Industrial Lighting | 3.6 mm | 0.142 in | Square | 4.2 A | Locking Ramp | Board Guide |
