V7-5 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
MICROSWITCH, MINIATURE, STRAIGHT LEVER, SPDT, QUICK CONNECT, 3 A
| Part | Operating Position | Operating Position | Electrical Life | Pretravel | Pretravel | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Mechanical Life | Termination Style | Switch Function | Current Rating (Amps) | Overtravel [custom] | Overtravel [custom] | Differential Travel | Differential Travel | Operating Force | Circuit | Voltage Rating - AC | Actuator Type | Differential Travel [x] | Differential Travel [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

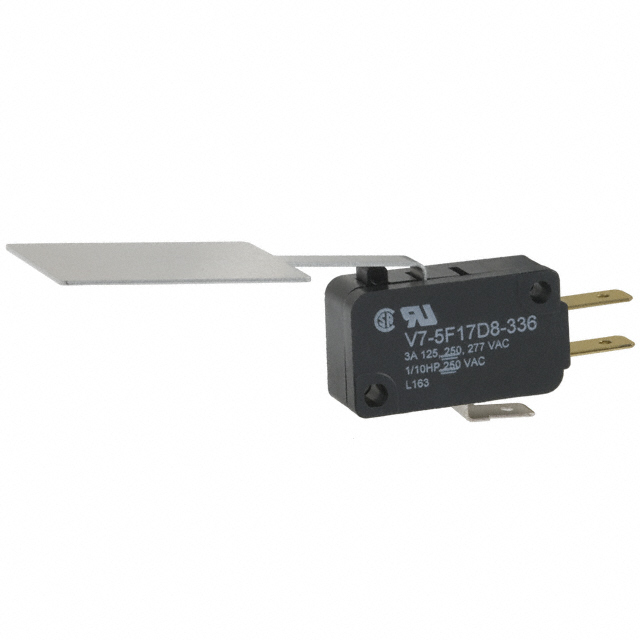

 Honeywell Sensing and Productivity Solutions | 0.6 in | 15.2 mm | 100000 Cycles | 0.47 " | 11.9 mm | 85 °C | -40 C | Chassis Mount | 10000000 Cycles | Quick Connect | On-Mom | 3 A | 7.6 mm | 0.3 " | 0.1 in | 2.54 mm | 2 gf | SPDT | 125 V | Lever Straight | ||
 Honeywell Sensing and Productivity Solutions | ||||||||||||||||||||||

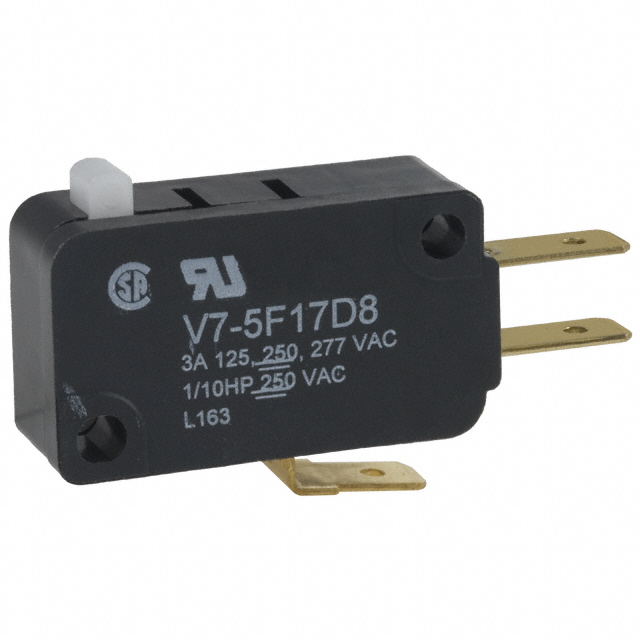

 Honeywell Sensing and Productivity Solutions | 0.579 in | 14.7 mm | 100000 Cycles | 0.047 in | 1.2 mm | 85 °C | -40 C | Chassis Mount | 10000000 Cycles | Quick Connect | On-Mom | 3 A | 1.27 mm | 0.05 " | 15 gf | SPDT | 125 V | Round (Pin Plunger) | 0.01 in | 0.25 mm |
