1546108 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 15POS STR 5.08MM

Part	Torque - Screw	Torque - Screw	Wire Strip Length [Max]	Wire Strip Length [Min]	Material Flammability Rating	Insulation Height	Insulation Height	Screw Size	Contact Material	Number of Levels	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Plug Wire Entry	Positions Per Level	Contact Mating Finish	Mounting Type	Termination Style	Pitch	Pitch	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 1-1546108-5	7 Lb-In	0.79 Nm	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	Phosphor Bronze	1	15	30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	15	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in
TE Connectivity AMP Connectors 4-1546108-4										1	8	30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	8	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Positions Stamped Retention Latches (Non-Wire Side)

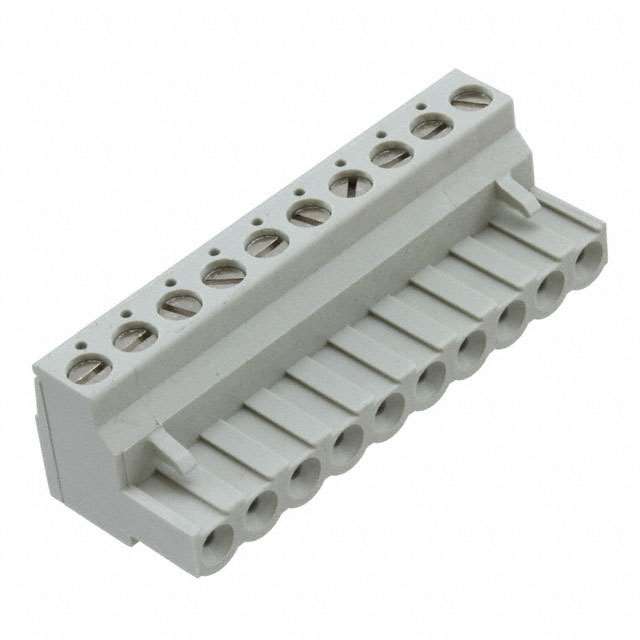

TE Connectivity AMP Connectors 1-1546108-0	7 Lb-In	0.79 Nm	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	Phosphor Bronze	1	10	30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	10	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in
TE Connectivity AMP Connectors 1546108-3	7 Lb-In	0.79 Nm	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	Phosphor Bronze	1		30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	3	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in		3 mm˛	0.05 mm˛

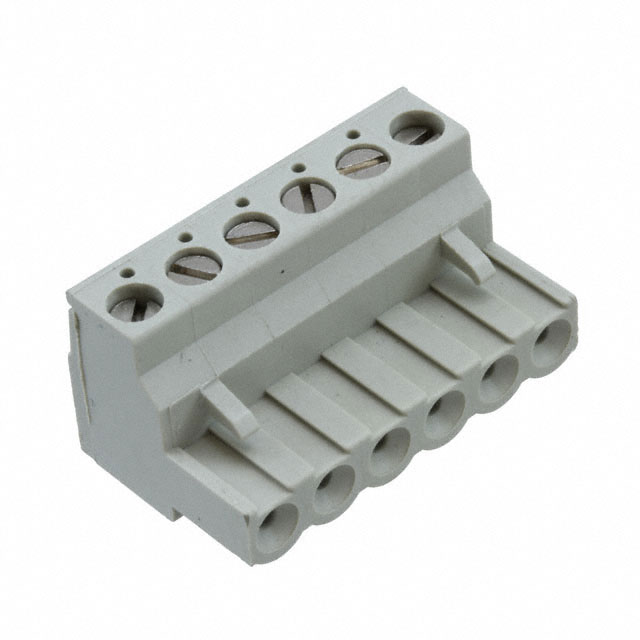

TE Connectivity AMP Connectors 1546108-6	7 Lb-In	0.79 Nm	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	Phosphor Bronze	1	6	30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	6	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in
TE Connectivity AMP Connectors 1-1546108-7	7 Lb-In	0.79 Nm	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	Phosphor Bronze	1		30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	17	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in		3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 1-1546108-2	7 Lb-In	0.79 Nm	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	Phosphor Bronze	1	12	30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	12	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in

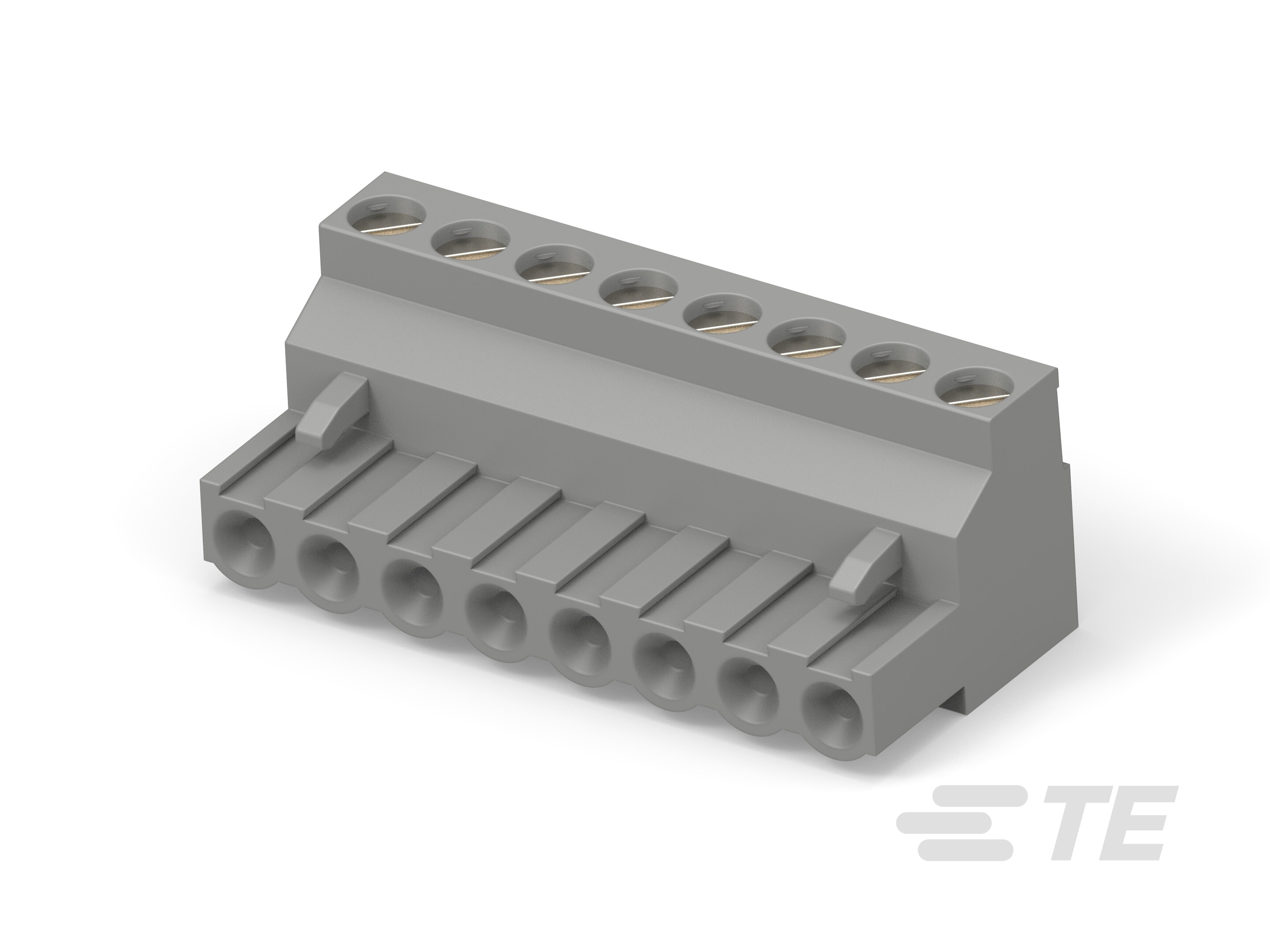

TE Connectivity AMP Connectors 4-1546108-5										1	8	30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	8	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in	Positions Stamped Retention Latches (Non-Wire Side)
TE Connectivity AMP Connectors 1-1546108-9	7 Lb-In	0.79 Nm	7.5 mm	6 mm	UL94 V-0	0.61 in	15.49 mm	M3	Phosphor Bronze	1	19	30 AWG	12 AWG	Plug Female Sockets	3 mm²	0.05 mm²	Gray	-40 C	110 °C	300 V	180 °	19	Tin	Free Hanging (In-Line)	Screw - Rising Cage Clamp	5.08 mm	0.2 in
