D3082 Series
Manufacturer: Harwin Inc.
Beta
⌘K

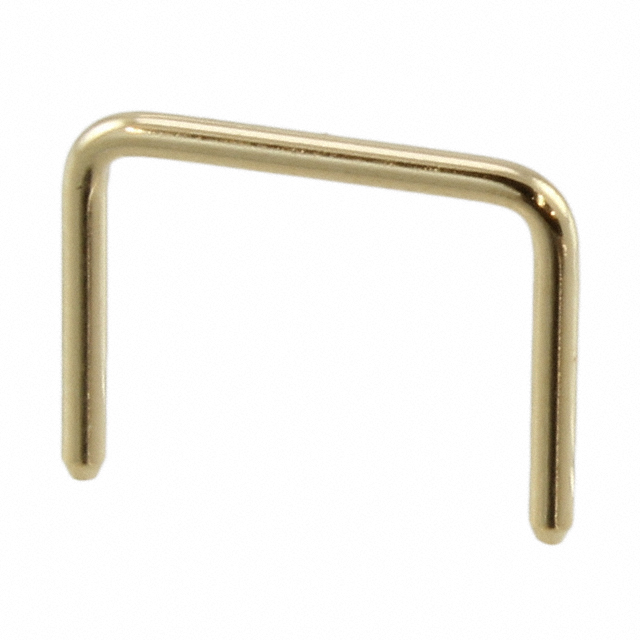

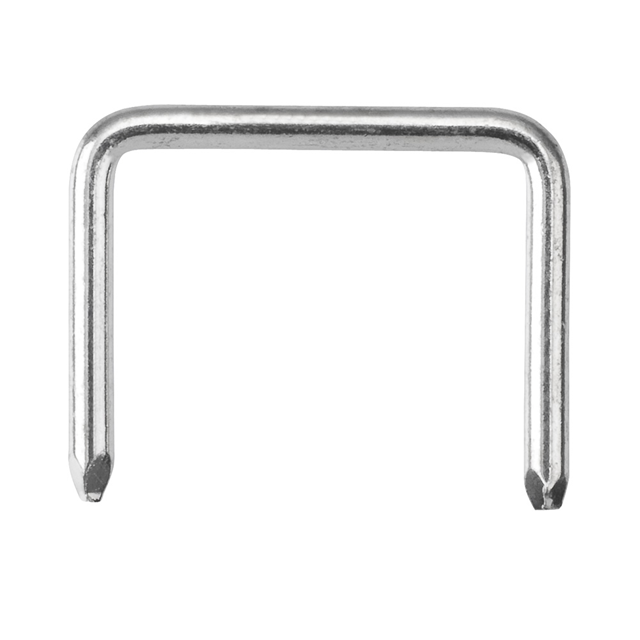

JUMPER (BUSBAR), SHORTING LINK / PIN, PCB, 2 POSITIONS, 10.16 MM
| Part | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Pitch | Pitch | Gender | Contact Finish Thickness | Contact Finish | Type | Height [z] | Height [z] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 1 x 2 | 2 | 10.16 mm | 0.4 in | Male Pins | Flash | Gold | Non-Insulated | 9.13 mm | 0.359 in | 10 A | ||
 Harwin Inc. | 1 x 2 | 2 | 10.16 mm | 0.4 in | Male Pins | Tin | Non-Insulated | 9.13 mm | 0.359 in | 10 A | 2.54 µm | 100 µin |
