M0116LD Series

Catalog

MODULE VF CHAR 1X16 14.7MM

Part	Interface	Viewing Area [x]	Viewing Area [y]	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Display Format [x]	Display Format [y]	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Character Size [z]	Character Size [y]	Format [y]	Format	Format [x]	Operating Temperature [Min]	Operating Temperature [Max]

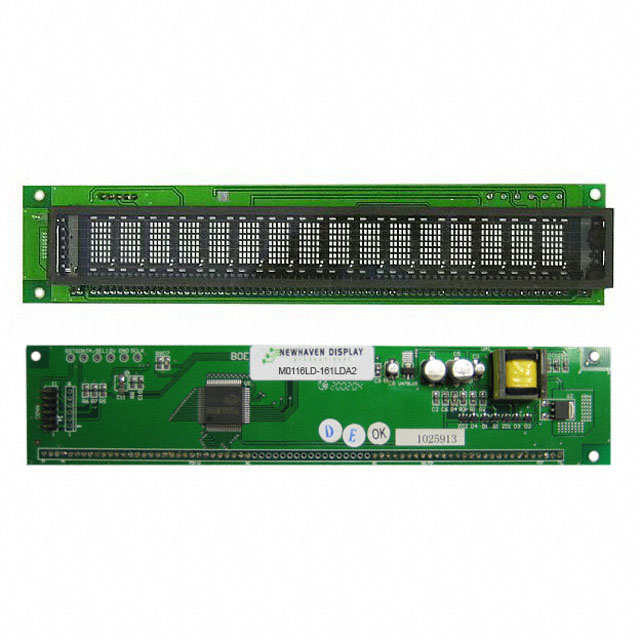

Newhaven Display Intl M0116LD-161LDA2	Serial	174 mm	16 mm	26.5 mm	218 mm	45 mm	16	1	Character	13.2 V	10.8 VDC	14.7 mm	7.1 mm	7	Dots	5 Dots	-20 ░C	70 °C

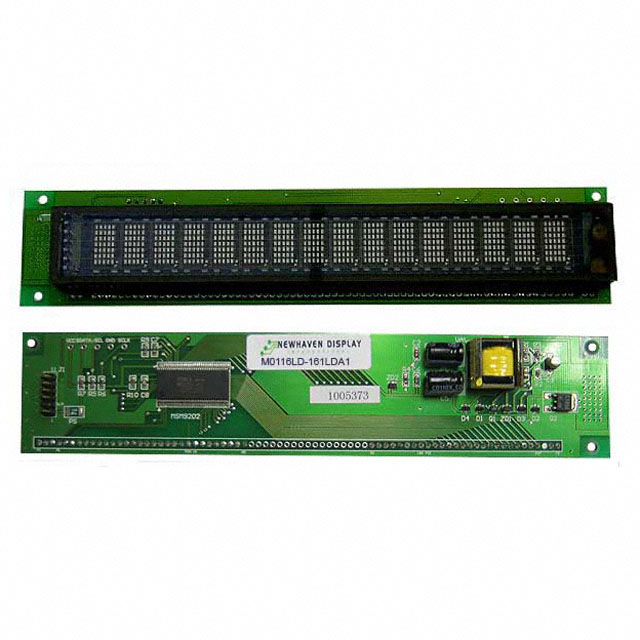

Newhaven Display Intl M0116LD-161LDA1	Serial	174 mm	16 mm	26.5 mm	218 mm	45 mm	16	1	Character	5.5 V	4.5 V	14.7 mm	7.1 mm	7	Dots	5 Dots	-20 ░C	70 °C
