VGS-35W Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 15V 36W
| Part | Number of Outputs | Current - Output 1 | Applications | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Type | Efficiency | Standard Number | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 | 2.4 A | Household Appliances ITE (Commercial) | 4000 V | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 36 W | -30 °C | 70 °C | CE cURus | 305 VAC 430 VDC | 85 VAC 120 VDC | 15 V | Enclosed | 86 % | 60335-1 62368-1 | Chassis Mount |

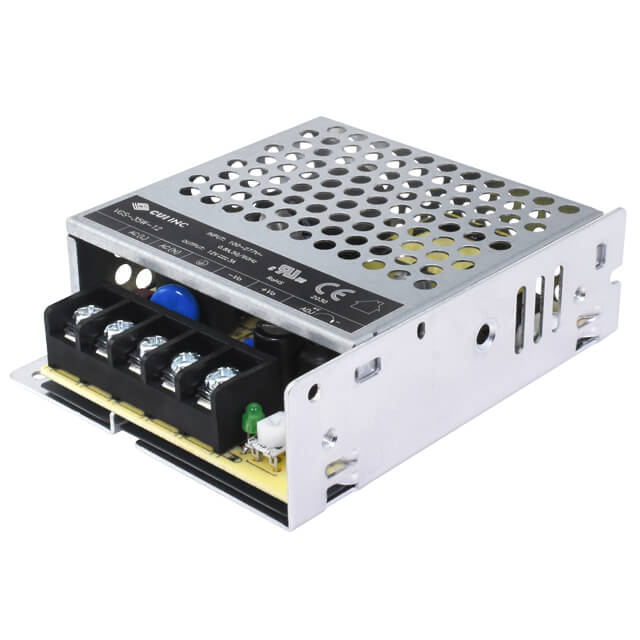

 CUI Inc. | 1 | 3 A | Household Appliances ITE (Commercial) | 4000 V | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 36 W | -30 °C | 70 °C | CE cURus | 305 VAC 430 VDC | 85 VAC 120 VDC | 12 V | Enclosed | 85 % | 60335-1 62368-1 | Chassis Mount |

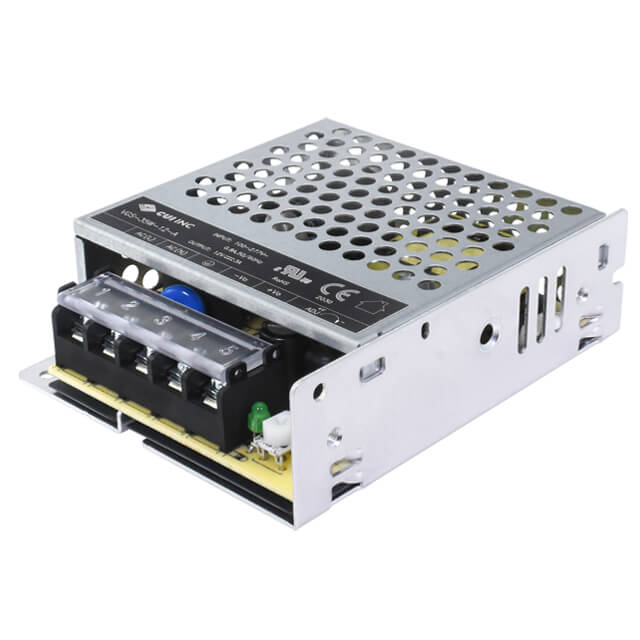

CUI Inc. | 1 | 3 A | Household Appliances ITE (Commercial) | 4000 V | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 36 W | -30 °C | 70 °C | CE cURus | 305 VAC 430 VDC | 85 VAC 120 VDC | 12 V | Enclosed | 85 % | 60335-1 62368-1 | Chassis Mount |
CUI Inc. | 1 | 1.5 A | Household Appliances ITE (Commercial) | 4000 V | 3.23 in | 3.9 " | 30 mm | 99 mm | 82 mm | 1.18 in | 36 W | -30 °C | 70 °C | CE cURus | 305 VAC 430 VDC | 85 VAC 120 VDC | 24 V | Conformal Coated Enclosed | 87 % | 60335-1 62368-1 | Chassis Mount |
