6418 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

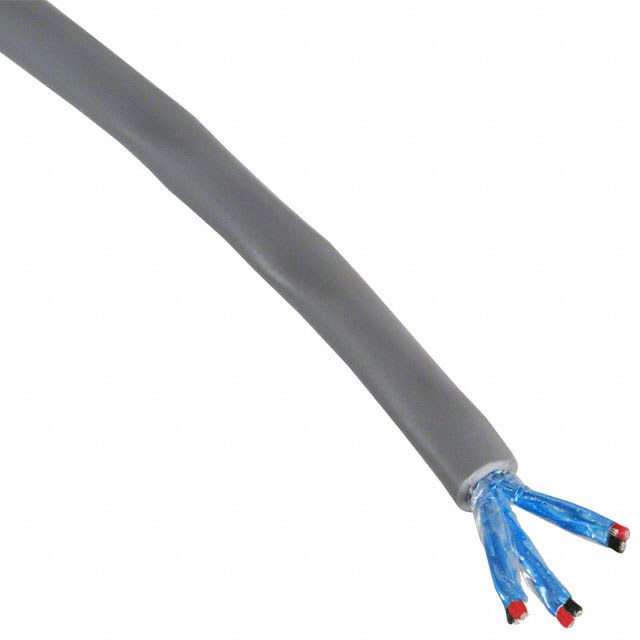

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 3 PAIR, 22 AWG, 0.35 MM², 500 FT, 152.4 M
| Part | Number of Conductors | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Features | Cable Type | Wire Gauge | Jacket Color | Shield Type | Voltage | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Insulation | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 6 | Aluminum | -20 C | 105 ░C | 500 ' | 152.4 m | Drain Wire | Multi-Pair | 22 AWG | Slate | Foil | 300 V | Copper Tinned | 28 | 7 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 100 % | 0.291 " | 7.39 mm | ||
ALPHA WIRE | 6 | Aluminum | -20 C | 105 ░C | Drain Wire | Multi-Pair | 22 AWG | Slate | Foil | 300 V | Copper Tinned | 28 | 7 | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 100 % | 0.291 " | 7.39 mm | 1000 ft | 304.8 m |
