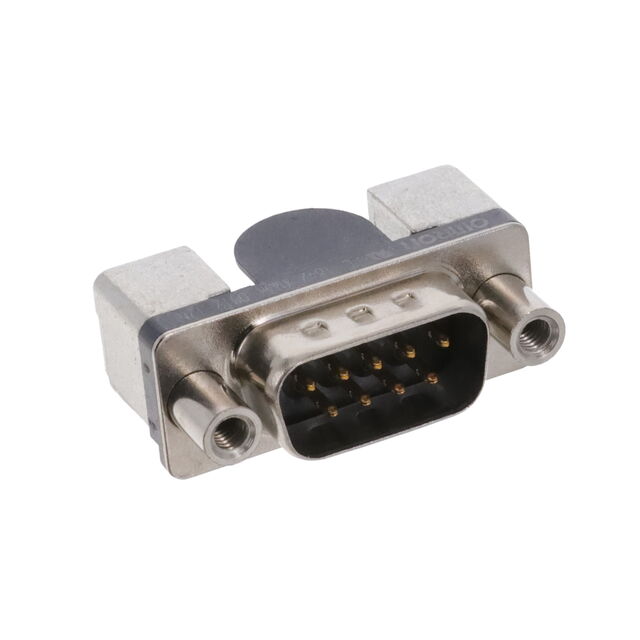

XM3K Series
D-Sub Standard Connectors D-SUB SMT Plug 9pin AnchorScrew 4-40 UNC
Manufacturer: Omron Electronics Inc-EMC Div
Catalog
D-Sub Standard Connectors D-SUB SMT Plug 9pin AnchorScrew 4-40 UNC
Beta
⌘K
D-Sub Standard Connectors D-SUB SMT Plug 9pin AnchorScrew 4-40 UNC
D-Sub Standard Connectors D-SUB SMT Plug 9pin AnchorScrew 4-40 UNC
D-Sub Standard Connectors D-SUB SMT Plug 9pin AnchorScrew 4-40 UNC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Material | Voltage Rating | Number of Positions | Current Rating (Amps) | Contact Finish | Mounting Type | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Shell Material, Finish | Number of Rows [custom] | Features | Contact Type | Material Flammability Rating | Termination | Connector Type | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | -55 C | 105 ░C | Black | Liquid Crystal Polymer (LCP) | Copper Alloy | 300 VAC | 9 | 3 A | Gold | Right Angle Surface Mount | Housing/Shell (M3) | 1 | DE E | D-Sub | Nickel Plated Steel | 2 | Board Guide Grounding Indents Shielded | Signal | UL94 V-0 | Solder | Plug Male Pins | |||
 Omron Electronics Inc-EMC Div | -55 C | 105 ░C | Black | Liquid Crystal Polymer (LCP) | Copper Alloy | 300 VAC | 9 | 3 A | Gold | Right Angle Surface Mount | Mating Side Female Screwlock (M3) | 1 | DE E | D-Sub | Nickel Plated Steel | 2 | Board Guide Grounding Indents Shielded | Signal | UL94 V-0 | Solder | Plug Male Pins | |||
 Omron Electronics Inc-EMC Div | 9 | 3 A | Gold | Right Angle Surface Mount | Housing/Shell | 1 | DE E | D-Sub | Nickel Plated Steel | 2 | Board Guide Grounding Indents Shielded | Signal | UL94 V-0 | Solder | Plug Male Pins | 4-40 | ||||||||
Omron Electronics Inc-EMC Div | -55 C | 105 ░C | Black | Liquid Crystal Polymer (LCP) | Copper Alloy | 300 VAC | 25 | 3 A | Gold | Right Angle Surface Mount | 4-40 Mating Side Female Screwlock | D-Sub | Nickel Plated Steel | 2 | Board Guide Grounding Indents Shielded | Signal | UL94 V-0 | Solder | Plug Male Pins | B DB | 3 | |||
Omron Electronics Inc-EMC Div | -55 C | 105 ░C | Black | Liquid Crystal Polymer (LCP) | Copper Alloy | 300 VAC | 9 | 3 A | Gold | Right Angle Surface Mount | 4-40 Mating Side Female Screwlock | 1 | DE E | D-Sub | Nickel Plated Steel | 2 | Board Guide Grounding Indents Shielded | Signal | UL94 V-0 | Solder | Plug Male Pins | |||
 Omron Electronics Inc-EMC Div | -55 C | 105 ░C | Black | Liquid Crystal Polymer (LCP) | Copper Alloy | 300 VAC | 25 | 3 A | Gold | Right Angle Surface Mount | Mating Side Female Screwlock (M3) | D-Sub | Nickel Plated Steel | 2 | Board Guide Grounding Indents Shielded | Signal | UL94 V-0 | Solder | Plug Male Pins | B DB | 3 | |||
Omron Electronics Inc-EMC Div | 25 | 3 A | Gold | Right Angle Surface Mount | Housing/Shell | D-Sub | Nickel Plated Steel | 2 | Board Guide Grounding Indents Shielded | Signal | UL94 V-0 | Solder | Plug Male Pins | 4-40 | B DB | 3 | ||||||||
Omron Electronics Inc-EMC Div | -55 C | 105 ░C | Black | Liquid Crystal Polymer (LCP) | Copper Alloy | 300 VAC | 25 | 3 A | Gold | Right Angle Surface Mount | Housing/Shell (M3) | D-Sub | Nickel Plated Steel | 2 | Board Guide Grounding Indents Shielded | Signal | UL94 V-0 | Solder | Plug Male Pins | B DB | 3 |
