EEG.2B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 19POS GOLD CRIMP

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Orientation [custom]	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Ingress Protection	Shielding	Mounting Feature	Material Flammability Rating	Shell Finish	Shell Size - Insert	Number of Positions	Current Rating (Amps)	Contact Material	Primary Material	Insert Material	Mounting Type	Termination	Shell Size - Insert [custom]	Shell Size - Insert [custom]
LEMO EEG.2B.319.CYM	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome	319	19	5 A	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount	Crimp
LEMO EEG.2B.308.CLN	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome	308	8	10 A	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder

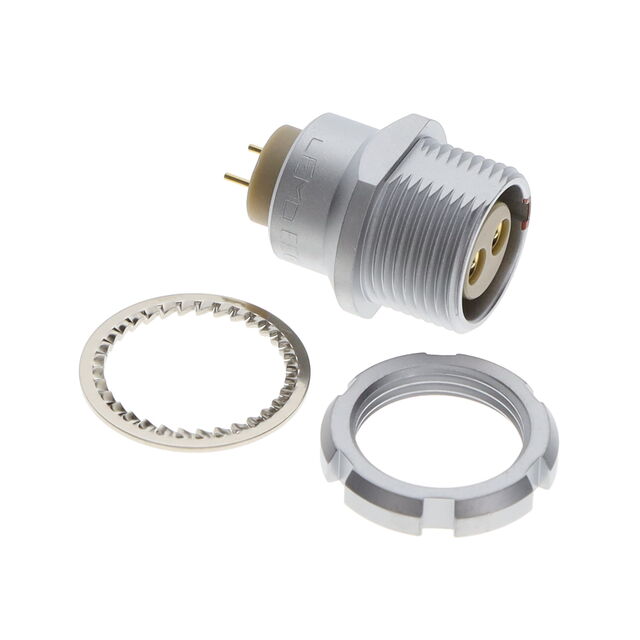

LEMO EEG.2B.302.CLN	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome	302	2	25 A	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder
LEMO EEG.2B.316.CLN	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome		16	6 A	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder	316
LEMO EEG.2B.318.CLNY	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome	318	18	5.5 Amps	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder
LEMO EEG.2B.303.CLN	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome	303		17 A	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder
LEMO EEG.2B.308.CYM	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome	308	8	10 A	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount	Crimp

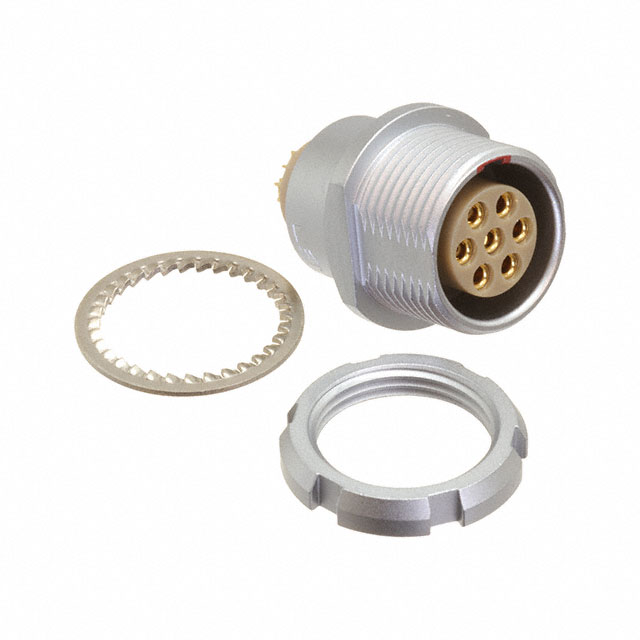

LEMO EEG.2B.307.CLL	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome		7	11 A	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount			307
LEMO EEG.2B.306.CLL	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome	306	6	12 Amps	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount
LEMO EEG.2B.310.CLN	Receptacle Female Sockets	-55 C	250 °C	Silver	G	Gold	Push-Pull	1.5 Ám	59 Áin	Brass	IP50 - Dust Protected	Shielded	Bulkhead - Front Side Nut	UL94 V-0	Chrome	310	10	8 A	Bronze	Metal	Polyetheretherketone (PEEK)	Panel Mount Through Hole	Solder
