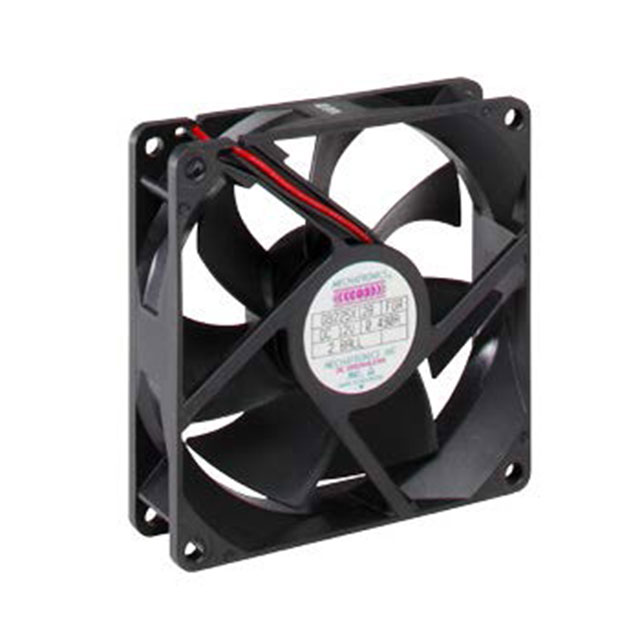

G9225 Series

Catalog

FAN AXIAL 92X25MM 24VDC WIRE

Part	Current Rating (Amps)	Noise	Features	Bearing Type	Air Flow	Air Flow	Termination	Approval Agency	Static Pressure	Static Pressure	Width [y]	RPM	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated	Fan Type	Weight	Weight	Ingress Protection

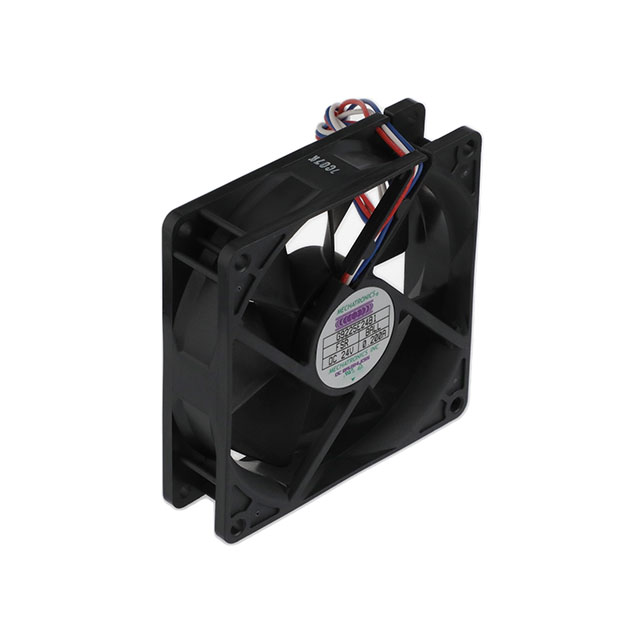

Mechatronics Fan Group G9225E24B1-FSR	0.2 A	39 dB(A)	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball	1.62 mł/min	58 CFM	3 Wire Leads	CE cUL TUV UL	52.3 Pa	0.21 in H2O	25 mm	3200 RPM	92 mm	92 mm	24 VDC	Tubeaxial	98.88 g	0.218 lb
Mechatronics Fan Group G9225H12B6-FSR-EM	0.28 A	36 dB	PWM Control Thermal Overload Protector (TOP)	Ball	1.4 m³/min	50 CFM	3 Wire Leads	CE cUL TUV UL	39.8 Pa	0.16 in H2O	25 mm	2800 RPM	92 mm	92 mm	12 VDC	Tubeaxial	98.88 g	0.218 lb	IP57 - Dust Protected Waterproof
Mechatronics Fan Group G9225E12B-FSR-EM	0.37 A	39 dB(A)	Thermal Overload Protector (TOP)	Ball	1.62 mł/min	58 CFM	2 Wire Leads	CE cUL TUV UL	52.3 Pa	0.21 in H2O	25 mm	3200 RPM	92 mm	92 mm	12 VDC	Tubeaxial	98.88 g	0.218 lb	IP57 - Dust Protected Waterproof
Mechatronics Fan Group G9225E12B-FSR	0.37 A	39 dB(A)	Thermal Overload Protector (TOP)	Ball	1.62 mł/min	58 CFM	2 Wire Leads	CE cUL TUV UL	52.3 Pa	0.21 in H2O	25 mm	3200 RPM	92 mm	92 mm	12 VDC	Tubeaxial	98.88 g	0.218 lb
Mechatronics Fan Group G9225E12B2-FSR-EM	0.37 A	39 dB(A)	Locked Rotor Sensor Thermal Overload Protector (TOP)	Ball	1.62 mł/min	58 CFM	3 Wire Leads	CE cUL TUV UL	52.3 Pa	0.21 in H2O	25 mm	3200 RPM	92 mm	92 mm	12 VDC	Tubeaxial	98.88 g	0.218 lb	IP57 - Dust Protected Waterproof
Mechatronics Fan Group G9225E24B-FSR	0.2 A	39 dB(A)	Thermal Overload Protector (TOP)	Ball	1.62 mł/min	58 CFM	2 Wire Leads	CE cUL TUV UL	52.3 Pa	0.21 in H2O	25 mm	3200 RPM	92 mm	92 mm	24 VDC	Tubeaxial	98.88 g	0.218 lb
Mechatronics Fan Group G9225M12B-FSR	0.2 A	32 dB	Thermal Overload Protector (TOP)	Ball	1.18 m³/min	42 CFM	2 Wire Leads	CE cUL TUV UL	29.9 Pa	0.12 in H2O	25 mm	2400 RPM	92 mm	92 mm	12 VDC	Tubeaxial	98.88 g	0.218 lb
Mechatronics Fan Group G9225X12B1+6-FSR	490 mA	42 dB	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball	1.85 m³/min	66 CFM	4 Wire Leads	CE cUL TUV UL	59.8 Pa	0.24 in H2O	25 mm	3600 RPM	92 mm	92 mm	12 VDC	Tubeaxial	98.88 g	0.218 lb
Mechatronics Fan Group G9225M12B1-FSR	0.2 A	32 dB	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball	1.18 m³/min	42 CFM	3 Wire Leads	CE cUL TUV UL	29.9 Pa	0.12 in H2O	25 mm	2400 RPM	92 mm	92 mm	12 VDC	Tubeaxial	98.88 g	0.218 lb
Mechatronics Fan Group G9225E12B1-FSR	0.37 A	39 dB(A)	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Ball	1.62 mł/min	58 CFM	3 Wire Leads	CE cUL TUV UL	52.3 Pa	0.21 in H2O	25 mm	3200 RPM	92 mm	92 mm	12 VDC	Tubeaxial	98.88 g	0.218 lb
