45384 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

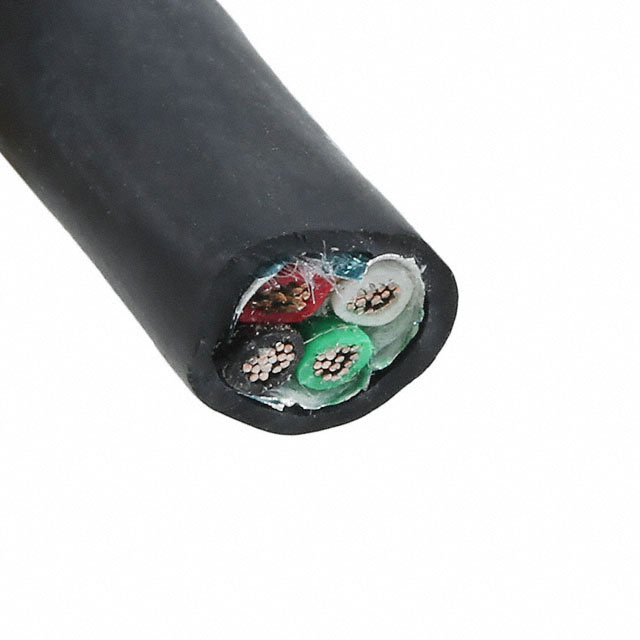

CABLE 4COND 18AWG SHLD 1000'
| Part | Conductor Insulation | Ratings | Conductor Material | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Voltage | Length | Length | Features | Shield Coverage | Wire Gauge | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Material | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Spool Size | Spool Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE | Thermoplastic Elastomer (TPE) | ISO 10993 | Copper Tinned | Foil | -50 °C | 125 °C | 4 | 300 V | 1000 ft | 304.8 m | Biological Compatibility Drain Wire Rip Cord | 100 % | 18 AWG | Multi-Conductor | 7.34 mm | 0.289 in | 16 | 30 AWG | Slate | Thermoplastic Elastomer (TPE) | Aluminum | 1.143 mm | 0.045 in | |||
ALPHA WIRE | Thermoplastic Elastomer (TPE) | ISO 10993 | Copper Tinned | Foil | -50 °C | 125 °C | 4 | 300 V | 1000 ft | 304.8 m | Biological Compatibility Drain Wire Rip Cord | 100 % | 18 AWG | Multi-Conductor | 7.34 mm | 0.289 in | 16 | 30 AWG | Yellow | Thermoplastic Elastomer (TPE) | Aluminum | 1.143 mm | 0.045 in | |||
 ALPHA WIRE | Thermoplastic Elastomer (TPE) | ISO 10993 | Copper Tinned | Foil | -50 °C | 125 °C | 4 | 300 V | Biological Compatibility Drain Wire Rip Cord | 100 % | 18 AWG | Multi-Conductor | 7.34 mm | 0.289 in | 16 | 30 AWG | Black | Thermoplastic Elastomer (TPE) | Aluminum | 1.143 mm | 0.045 in | Enter Number of Feet in Order Quantity | 1000 ft | 304.8 m |
