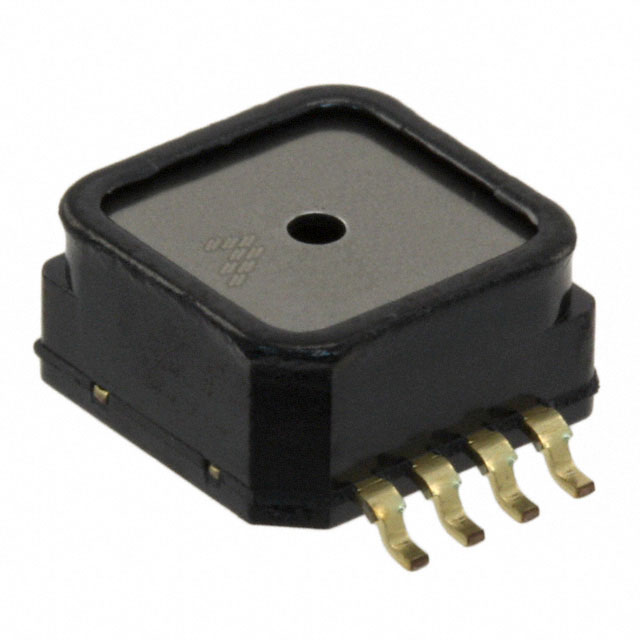

MPXH6115 Series

Catalog

ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 2.2-16.7PSI, 1.5%, 0.20-4.80V, SQUARE, SURFACE MOUNT

Part	Port Style	Supplier Device Package	Output Type	Features	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Min]	Operating Pressure [Max]	Maximum Pressure	Maximum Pressure	Mounting Type	Package / Case [y]	Package / Case [x]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Applications	Port Size	Port Size	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [custom]	Package / Case [custom]
Freescale Semiconductor - NXP MPXH6115AC6U	Barbless	8-SSOP	Analog Voltage	Temperature Compensated	115 kPa	2.18 PSI	15 kPa	16.68 PSI	400 kPa	58.02 PSI	Surface Mount	8.5 mm	0.335 in	8-SOIC Top Port	125 °C	-40 °C	1.5 %	Board Mount	0.13 "	3.3 mm	Gull Wing	4.75 V	5.25 V
Freescale Semiconductor - NXP MPXH6115A6T1	No Port	8-SSOP	Analog Voltage	Temperature Compensated	115 kPa	2.18 PSI	15 kPa	16.68 PSI	400 kPa	58.02 PSI	Surface Mount			8-SOIC	125 °C	-40 °C	1.5 %	Board Mount			Gull Wing	4.75 V	5.25 V	0.295 in	7.5 mm
