1437514 Series

Catalog

CONN PIN RCPT .025-.035 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Board Thickness [Min]	Board Thickness [Max]	Termination	Mounting Hole Diameter	Mounting Hole Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Square Pin Size	Accepts Square Pin Size	Contact Finish	Contact Material	Tail Type	Board Thickness [custom]	Board Thickness [custom]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]	Length - Overall	Length - Overall	Accepts Square Pin Size [x]	Accepts Square Pin Size [x]	Accepts Square Pin Size [y]	Accepts Square Pin Size [y]
TE Connectivity AMP Connectors 9-1437514-2	-65 ░C	125 °C	0.031 in 0.79 mm	0.125 " 3.18 mm	Press-Fit	0.064 "	1.63 mm	0.035 in	0.89 mm	0.025 in	0.64 mm	0.025 in	0.64 mm	Tin	Beryllium Copper	No Tail
TE Connectivity AMP Connectors 6-1437514-8

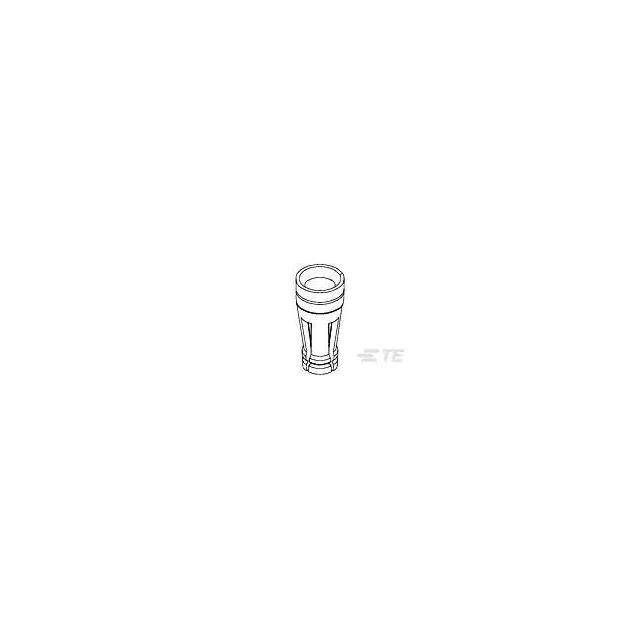

TE Connectivity AMP Connectors 4-1437514-5
TE Connectivity AMP Connectors 5-1437514-3
TE Connectivity AMP Connectors 6-1437514-2	-55 C	105 ░C			Solder			0.021 in		0.016 "	0.41 mm			Tin	Beryllium Copper	No Tail	0.76 mm	0.03 in	0.74 mm	0.029 in	0.043 in	1.09 mm	180 µin	4.57 µm	0.53 mm	0.094 in	2.39 mm	0.28 mm	0.011 in	0.018 in	0.46 mm
