MS27473T12B Series

Catalog

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Ingress Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shielding	Fastening Type	Mounting Type	Termination	Shell Size - Insert	Orientation	Color	Contact Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Grade	Shell Material	Qualification	Primary Material	Applications	Insert Material	Number of Positions	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]

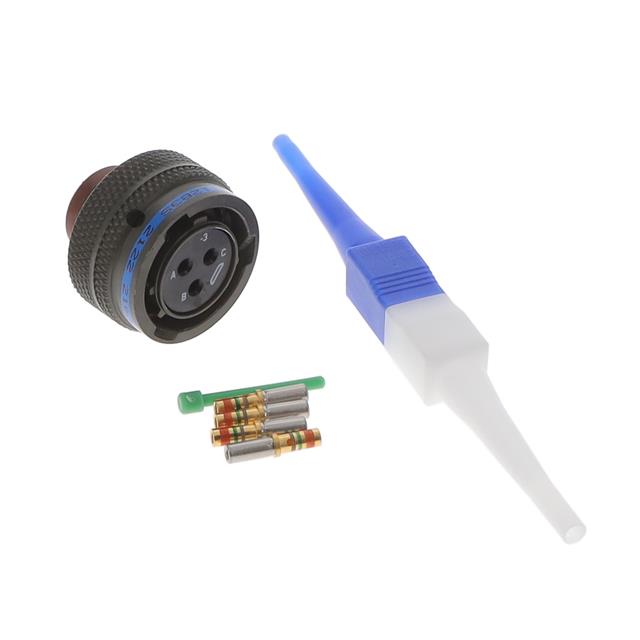

Amphenol Aerospace Operations MS27473T12B3S	Environment Resistant	Coupling Nut	-65 ░C	200 °C	Gold	Unshielded	Bayonet Lock	Free Hanging (In-Line)	Crimp	12-3	N	Olive Drab	Copper Alloy	Female Sockets Plug	1.27 µm	50 µin	Military	Aluminum	MIL-DTL-38999 Series II	Metal	Aviation Military

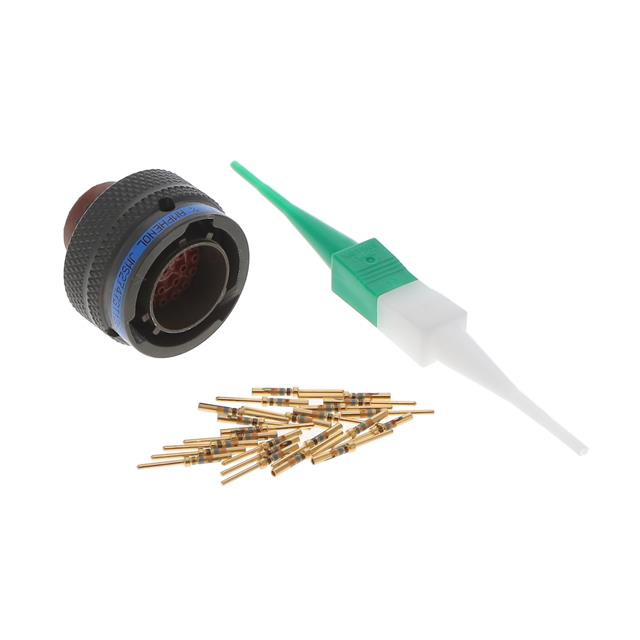

Amphenol Aerospace Operations MS27473T12B35P	Environment Resistant	Coupling Nut	-65 ░C	347 °F	Gold	Unshielded	Bayonet Lock	Free Hanging (In-Line)	Crimp		N	Olive Drab	Copper Alloy	Male Pins Plug	1.27 µm	50 µin	Military	Aluminum	MIL-DTL-38999 Series II	Metal	Aviation Military	Plastic	22 positions	35	12
