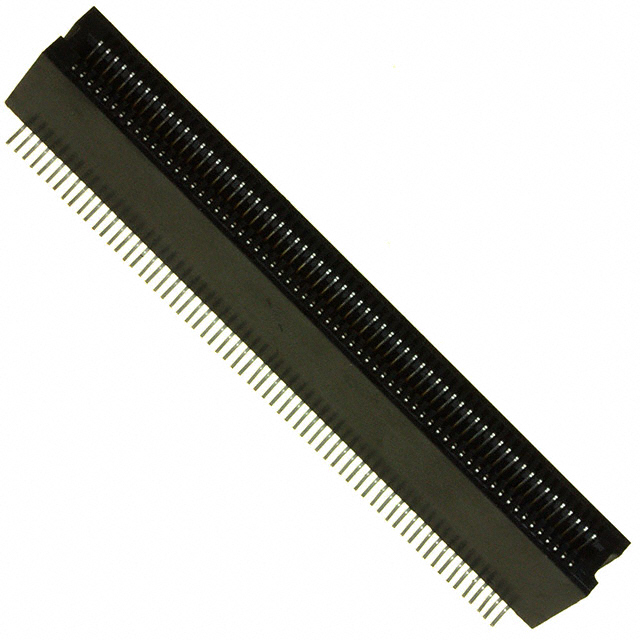

RBB64 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FML 128POS 0.050
| Part | Material - Insulation | Number of Positions/Bay/Row | Contact Finish | Mounting Type | Number of Rows [custom] | Contact Type | Pitch | Pitch | Termination | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Gender | Color | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Card Thickness | Card Thickness | Card Type | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Surface Mount | 2 | Cantilever | 0.05 in | 1.27 mm | Solder | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | ||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Right Angle Through Hole | 2 | Hairpin Bellows | 0.05 in | 1.27 mm | Solder Staggered | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | Board Lock | |||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Surface Mount | 2 | Hairpin Bellows | 0.05 in | 1.27 mm | Solder | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | Board Lock | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Right Angle Through Hole | 2 | Hairpin Bellows | 0.05 in | 1.27 mm | Solder Staggered | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | Board Lock | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Through Hole | 2 | Hairpin Bellows | 0.05 in | 1.27 mm | Solder Staggered | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | Board Lock | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Right Angle Through Hole | 2 | Hairpin Bellows | 0.05 in | 1.27 mm | Solder Staggered | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 3.18 mm | 0.125 " | |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Surface Mount | 2 | Cantilever | 0.05 in | 1.27 mm | Solder | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | ||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Through Hole | 2 | Cantilever | 0.05 in | 1.27 mm | Solder Staggered | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | Board Lock | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Through Hole | 2 | Cantilever | 0.05 in | 1.27 mm | Solder Staggered | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | ||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 64 | Gold | Surface Mount | 2 | Hairpin Bellows | 0.05 in | 1.27 mm | Solder | Phosphor Bronze | 0.25 Ám | 10 Áin | Female | Black | Dual | -65 ░C | 125 °C | 128 | 1.57 mm | 0.062 in | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening |
