NSPM2052 Series
5 V ESD and Surge Protection Device in 1.6 x 1.0 UDFN package
Manufacturer: ON Semiconductor
Catalog
5 V ESD and Surge Protection Device in 1.6 x 1.0 UDFN package
| Part | Package / Case | Supplier Device Package | Current - Peak Pulse (10/1000µs) | Power Line Protection | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Reverse Standoff (Typ) | Mounting Type | Capacitance @ Frequency | Voltage - Breakdown (Min) [Min] | Type | Voltage - Clamping (Max) @ Ipp [Max] | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 3-UDFN | 3-UDFN (1.6x1) | 120 A | 150 °C | -65 °C | 5 V | Surface Mount | 400 pF | 5.1 V | Zener | 9 V | 1 |
Key Features
• High Ipp capability
• Low Clamping Voltage

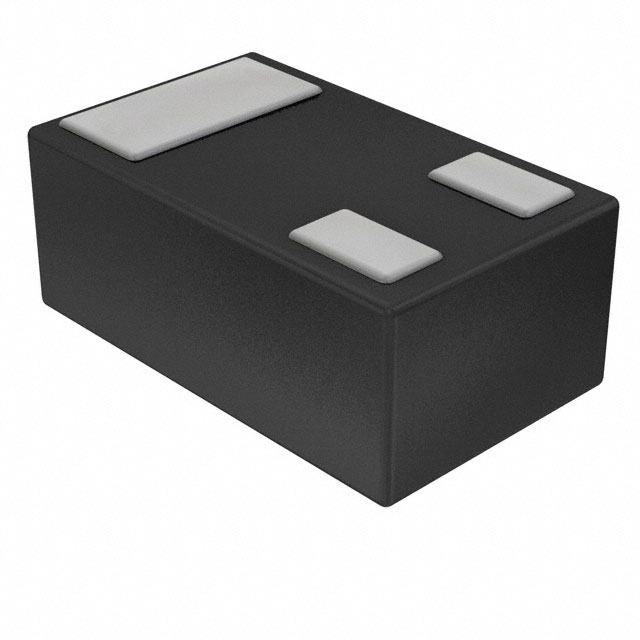

• 0603 UDFN package 1.6 x 1.0 mm
Description
AI
The NSPM2052 is designed to protect voltage sensitive components from ESD and Surge events. Industry leading voltage clamping, high peak pulse current handling capability, low leakage and fast response time provide best in class protection for Vbat and Vbus applications
