CMLB051H Series

Catalog

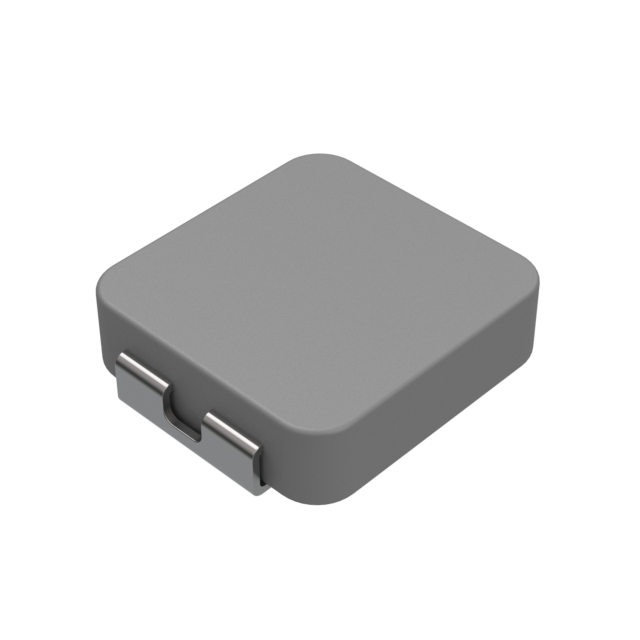

FIXED IND 330NH 16A 6.8MOHM SMD

Part	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Package / Case	Inductance	Material - Core	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance Frequency - Test	Current Rating (Amps)	Shielding	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLB051H-R33MS	17.1 A	-55 C	125 °C	6.8 mOhm	Nonstandard	330 nH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	16 A	Shielded
Delta Electronics/Cyntec CMLB051H-4R7MS	3.9 A	-55 C	125 °C		Nonstandard	4.7 ÁH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	3.5 A	Shielded	81 mOhm
Delta Electronics/Cyntec CMLB051H-6R8MS	3.4 A	-55 C	125 °C		Nonstandard	6.8 µH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	2.9 A	Shielded	125 mOhm
Delta Electronics/Cyntec CMLB051H-100MS	2.8 A	-55 C	125 °C	154 mOhm	Nonstandard	10 µH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	2.5 A	Shielded
Delta Electronics/Cyntec CMLB051H-2R2MS	6 A	-55 C	125 °C		Nonstandard	2.2 µH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	5.2 A	Shielded	35 mOhm
Delta Electronics/Cyntec CMLB051H-1R5MS	7.2 A	-55 C	125 °C	28 mOhm	Nonstandard	1.5 µH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	6.2 Amps	Shielded
Delta Electronics/Cyntec CMLB051H-R68MS	11.2 A	-55 C	125 °C	13.8 mOhm	Nonstandard	0.68 µH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	9 A	Shielded
Delta Electronics/Cyntec CMLB051H-3R3MS	4.8 A	-55 C	125 °C		Nonstandard	3.3 µH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	4.7 A	Shielded
Delta Electronics/Cyntec CMLB051H-1R0MS	8.6 A	-55 C	125 °C		Nonstandard	1 µH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	8.5 A	Shielded	18 mOhm
Delta Electronics/Cyntec CMLB051H-R47MS	15.5 A	-55 C	125 °C		Nonstandard	470 nH	Metal	Surface Mount	1.8 mm	0.071 in	20 %	0.213 in	5.4 mm	5.2 mm	0.205 "	100 kHz	11 A	Shielded	8.5 mOhm
