ABP2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
BOARD MOUNT PRESSURE SENSORS BASIC PRESSURE,LEADED SMT,RADI
| Part | Termination Style | Operating Pressure | Operating Pressure | Features | Output Type | Mounting Type | Accuracy | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Supplier Device Package | Output | Voltage - Supply [Max] | Voltage - Supply [Min] | Pressure Type | Package / Case | Maximum Pressure | Maximum Pressure | Port Style | Port Size | Port Size | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

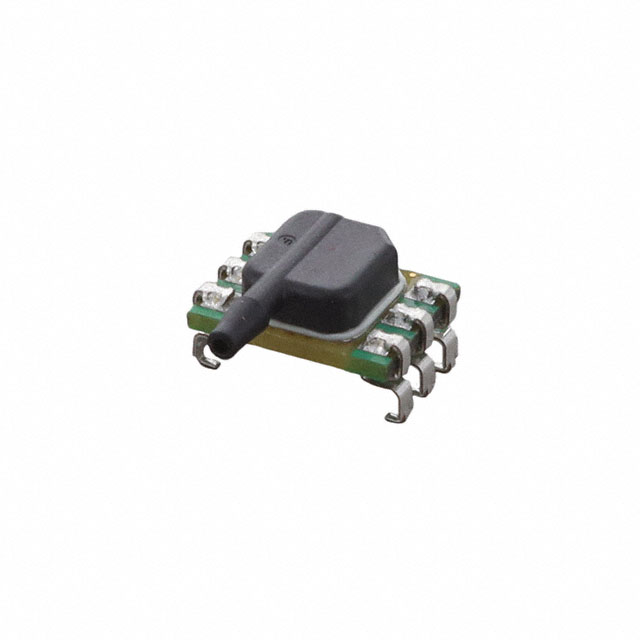

 Honeywell Sensing and Productivity Solutions | J Lead | 16 kPa | 2.32 PSI | Amplified Output Temperature Compensated | I2C | Surface Mount | 0.25 % | -40 C | 110 °C | 6-SMD J-Lead Side Port | 6-SMD | 14 b | 3.6 V | 1.8 V | Vented Gauge | |||||||
 Honeywell Sensing and Productivity Solutions | PC Pin | 34.47 kPa | 5 PSI | Amplified Output Temperature Compensated | I2C | Through Hole | 0.25 % | -40 C | 110 °C | 6-DIP Top Port | 6-DIP | 14 b | 3.6 V | 1.8 V | Gauge | 0.453 in 11.5 mm | 1654.74 kPa | 240 PSI | Barbless | 2.69 mm | Male Tube | 0.106 in |

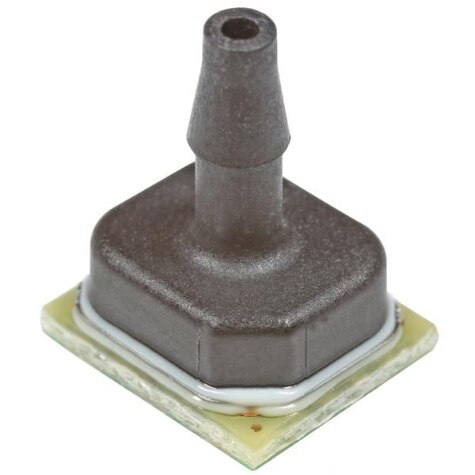

 Honeywell Sensing and Productivity Solutions | SMD (SMT) Tab | 1034.21 kPa | 150 PSI | Amplified Output Temperature Compensated | I2C | Surface Mount | 0.25 % | -40 C | 110 °C | 6-SMD No Lead Top Port | 6-SMT | 14 b | 3.6 V | 1.8 V | Vented Gauge | 1723.69 kPa | 250 PSI | Barbed | 2.74 mm | Male Tube | 0.11 in |
