K22KAC-P Series
Manufacturer: ODU
Beta
⌘K

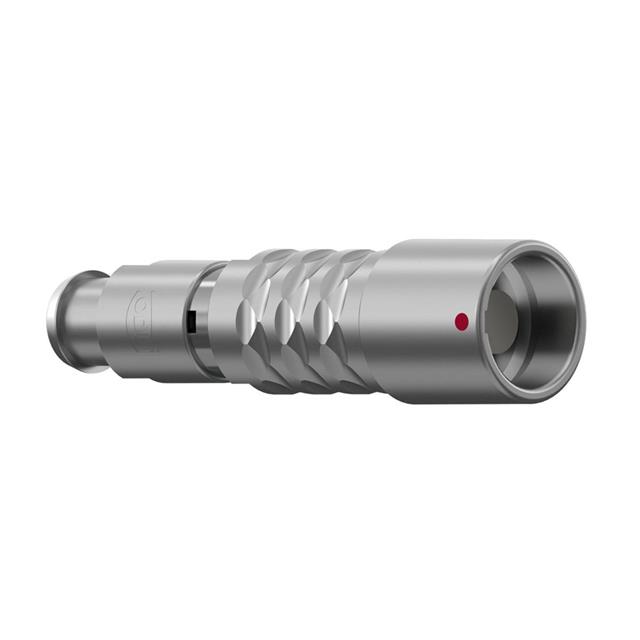

ODU MINI-SNAP RECEPT.INLINE,SZ.2
| Part | Mounting Type | Color | Cable Opening [Min] | Cable Opening [Max] | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Shielding | Insert Material | Number of Positions | Applications | Ingress Protection | Shell Size - Insert [custom] | Features | Fastening Type | Connector Type | Contact Material | Voltage Rating | Primary Material | Termination | Current Rating (Amps) | Orientation | Contact Finish - Mating | Backshell Material, Plating | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | Silver | 0.335 in 8.5 mm | 0.354 in 9 mm | Chrome over Nickel | 120 °C | -40 C | Brass | Shielded | Polyetheretherketone (PEEK) | 16 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | 2 | Backshell Strain Relief | Push-Pull | Receptacle Female Sockets | Brass | 300 VDC | Metal | Crimp | 7.5 A | A | Gold | Brass Chrome over Nickel | |||
Free Hanging (In-Line) | Silver | 0.138 " | 0.157 in | Chrome over Nickel | 120 °C | -40 C | Brass | Shielded | Polyetheretherketone (PEEK) | 16 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | 2 | Backshell Strain Relief | Push-Pull | Receptacle Female Sockets | Brass | 300 VDC | Metal | 7.5 A | A | Gold | Brass Chrome over Nickel | 4 mm | 3.5 mm | ||
Free Hanging (In-Line) | Silver | 0.217 in | 0.236 in | Chrome over Nickel | 120 °C | -40 C | Brass | Shielded | Polyetheretherketone (PEEK) | 14 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | 2 | Backshell Strain Relief | Push-Pull | Receptacle Female Sockets | Brass | 366 V | Metal | 7.5 A | A | Gold | Brass Chrome over Nickel | 6 mm | 5.5 mm | ||
Free Hanging (In-Line) | Silver | 0.217 in | 0.236 in | Chrome over Nickel | 120 °C | -40 C | Brass | Shielded | Polyetheretherketone (PEEK) | 14 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | 2 | Backshell Strain Relief | Push-Pull | Receptacle Female Sockets | Brass | 366 V | Metal | Crimp | 7.5 A | A | Gold | Brass Chrome over Nickel | 6 mm | 5.5 mm | |
Free Hanging (In-Line) | Silver | 0.157 in | 0.177 " | Chrome over Nickel | 120 °C | -40 C | Brass | Shielded | Polyetheretherketone (PEEK) | 16 | Industrial Medical Military Testing Equipment & Measurement | IP68 - Dust Tight Waterproof | 2 | Backshell Strain Relief | Push-Pull | Receptacle Female Sockets | Brass | 300 VDC | Metal | Crimp | 7.5 A | A | Gold | Brass Chrome over Nickel | 4.5 mm | 4 mm |
