HEN.0F Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Mounting Type	Ingress Protection	Fastening Type	Shielding	Contact Finish - Mating	Termination	Primary Material	Shell Material	Color	Mounting Feature	Contact Material	Material Flammability Rating	Connector Type	Shell Finish	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Current Rating (Amps)	Insert Material	Features	Shell Size - Insert
LEMO HEN.0F.304.XLNP	100 °C	-15 °C	N (Normal)	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Aluminum Alloy	Gray	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Nickel	Aerospace	1.5 Ám	59 Áin	4	7 A	Polyetheretherketone (PEEK)	Potted	304
LEMO HEN.0F.304.CLNP	150 °C	-50 °C	N (Normal)	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Brass	Silver	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Chrome	Aerospace	1.5 Ám	59 Áin	4	7 A	Polyetheretherketone (PEEK)	Potted	304
LEMO HEN.0F.303.XLNP	100 °C	-15 °C	N (Normal)	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Aluminum Alloy	Gray	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Nickel	Aerospace	1.5 Ám	59 Áin		8 A	Polyetheretherketone (PEEK)	Potted	303
LEMO HEN.0F.302.XLNP	100 °C	-15 °C	N (Normal)	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Aluminum Alloy	Gray	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Nickel	Aerospace	1.5 Ám	59 Áin	2	10 A	Polyetheretherketone (PEEK)	Potted	302
LEMO HEN.0F.304.XLVP	100 °C	-15 °C	N (Normal)	Panel Mount Right Angle Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Aluminum Alloy	Gray	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Nickel	Aerospace	1.5 Ám	59 Áin	4	7 A	Polyetheretherketone (PEEK)	Potted	304
LEMO HEN.0F.305.CLNPY	150 °C	-50 °C	N (Normal)	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Brass	Silver	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Chrome	Aerospace	1.5 Ám	59 Áin	5	6.5 A	Polyetheretherketone (PEEK)	Potted	305

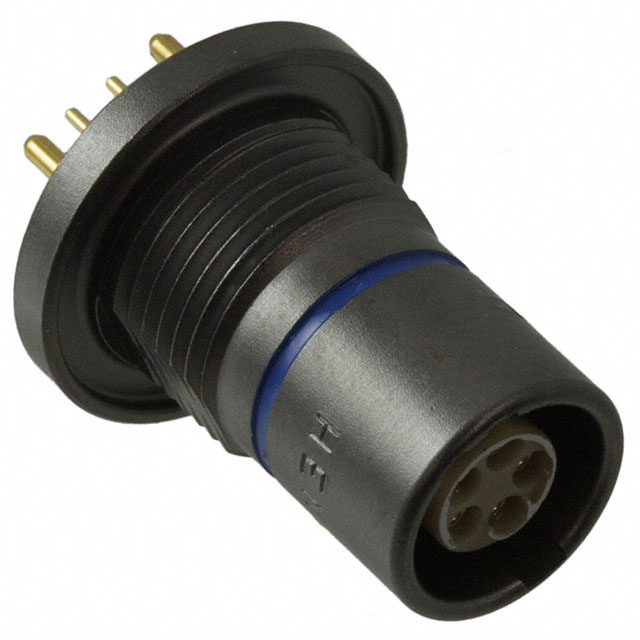

LEMO HEN.0F.305.XLNP	100 °C	-15 °C	N (Normal)	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Aluminum Alloy	Gray	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Nickel	Aerospace	1.5 Ám	59 Áin	5	6.5 A	Polyetheretherketone (PEEK)	Potted	305
LEMO HEN.0F.305.XLNPS	100 °C	-15 °C	N (Normal)	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Aluminum Alloy	Gray	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Nickel	Aerospace	1.5 Ám	59 Áin	5	6.5 A	Polyetheretherketone (PEEK)	Potted	305
LEMO HEN.0F.305.XLLP	100 °C	-15 °C	N (Normal)	Panel Mount	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold		Metal	Aluminum Alloy	Gray	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Nickel	Aerospace	1.5 Ám	59 Áin	5	6.5 A	Polyetheretherketone (PEEK)	Potted	305
LEMO HEN.0F.305.CLNP	150 °C	-50 °C	N (Normal)	Panel Mount Through Hole	IP68 - Dust Tight Waterproof	Push-Pull	Shielded	Gold	Solder	Metal	Brass	Silver	Bulkhead - Front Side Nut	Bronze	UL94 V-0	Receptacle Female Sockets	Chrome	Aerospace	1.5 Ám	59 Áin	5	6.5 A	Polyetheretherketone (PEEK)	Potted	305
