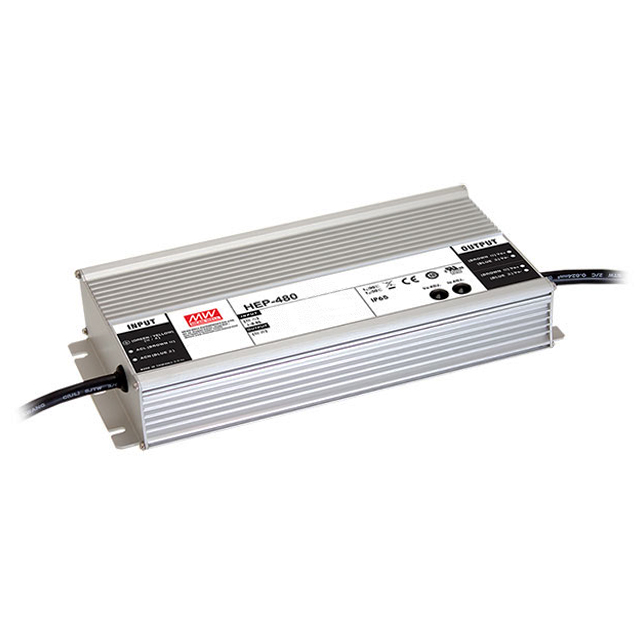

HEP-480 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 36V 479W
| Part | Minimum Load Required | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage - Output 1 [custom] | Approval Agency | Voltage - Isolation | Efficiency | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Type | Features | Current - Output 1 | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | -55 °C | 65 °C | 1 | 36 V | CB CE cURus | 3750 VDC | 95 % | Chassis Mount | 262 mm | 43.8 mm | 10.31 " | 1.72 in | 4.92 in | 125 mm | 90 VAC 127 VDC | 305 VAC 431 VDC | 479 W | Enclosed | Adjustable Output IP65 PFC Universal Input | 13.3 A | ||
MEAN WELL USA Inc. | ITE (Commercial) | -55 °C | 65 °C | 1 | CB CE cURus | 3750 VDC | 94.5 % | Chassis Mount | 262 mm | 43.8 mm | 10.31 " | 1.72 in | 4.92 in | 125 mm | 90 VAC 127 VDC | 305 VAC 431 VDC | 480 W | Enclosed | Adjustable Output IP65 PFC Universal Input | 10 A | 48 V | ||
MEAN WELL USA Inc. | ITE (Commercial) | -55 °C | 65 °C | 1 | CB CE cURus | 3750 VDC | 95 % | Chassis Mount | 262 mm | 43.8 mm | 10.31 " | 1.72 in | 4.92 in | 125 mm | 90 VAC 127 VDC | 305 VAC 431 VDC | 481 W | Enclosed | Adjustable Output IP65 PFC Universal Input | 8.9 A | 54 V |
