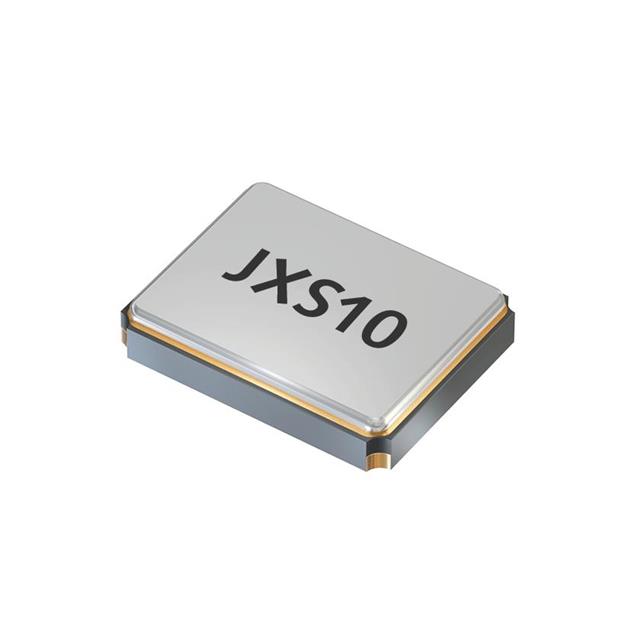

JXS10 Series

Catalog

CRYSTAL 37.40MHZ 6PF SMD

Part	Frequency	Type	Frequency Stability	Load Capacitance	Frequency Tolerance	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Operating Mode	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Jauch Quartz Q 38,40-JXS10-6-10/10-FU-LF	38.4 MHz	MHz Crystal	10 ppm	6 pF	10 ppm	Surface Mount	4-SMD No Lead	-20 ░C	70 °C	Fundamental	60 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 32,0-JXS10-6-10/15-T1-FU-LF	32 MHz	MHz Crystal	10 ppm	6 pF	15 ppm	Surface Mount	4-SMD No Lead	-40 C	85 °C	Fundamental	100 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 38,40-JXS10-6-10/15-T1-FU-LF	38.4 MHz	MHz Crystal	10 ppm	6 pF	15 ppm	Surface Mount	4-SMD No Lead	-40 C	85 °C	Fundamental	60 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 32,0-JXS10-8-10/15-T1-FU-LF	32 MHz	MHz Crystal	10 ppm	8 pF	15 ppm	Surface Mount	4-SMD No Lead	-40 C	85 °C	Fundamental	100 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 38,40-JXS10-8-10/10-FU-LF	38.4 MHz	MHz Crystal	10 ppm	8 pF	10 ppm	Surface Mount	4-SMD No Lead	-20 ░C	70 °C	Fundamental	60 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 80,0-JXS10-6-10/10-FU-LF	80 MHz	MHz Crystal	10 ppm	6 pF	10 ppm	Surface Mount	4-SMD No Lead	-20 ░C	70 °C	Fundamental	60 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 37,40-JXS10-8-10/15-T1-FU-LF	37.4 MHz	MHz Crystal	10 ppm	8 pF	15 ppm	Surface Mount	4-SMD No Lead	-40 C	85 °C	Fundamental	60 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 48,0-JXS10-8-10/10-FU-LF	48 MHz	MHz Crystal	10 ppm	8 pF	10 ppm	Surface Mount	4-SMD No Lead	-20 ░C	70 °C	Fundamental	60 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 32,0-JXS10-6-10/10-FU-LF	32 MHz	MHz Crystal	10 ppm	6 pF	10 ppm	Surface Mount	4-SMD No Lead	-20 ░C	70 °C	Fundamental	100 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
Jauch Quartz Q 80,0-JXS10-6-10/15-T1-FU-LF	80 MHz	MHz Crystal	10 ppm	6 pF	15 ppm	Surface Mount	4-SMD No Lead	-40 C	85 °C	Fundamental	60 Ohms	0.047 in	1 mm	0.039 in	1.2 mm
