H6B Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN BASE BOTTOM ENTRY 6B

Part	Lock Location	Housing Finish	Connector Type	Housing Color	Ingress Protection	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Size	Style	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Features
TE Connectivity AMP Connectors H6B-AG	Locking Clip (1) on Base Bottom	Powder Coated	Base - Panel Mount	Gray	IP65 - Dust Tight Water Resistant	82 mm	3.228 in	1.799 in	1.173 "	45.7 mm	29.8 mm	Aluminum Alloy Die Cast	125 °C	-40 C	6B	Bottom Entry

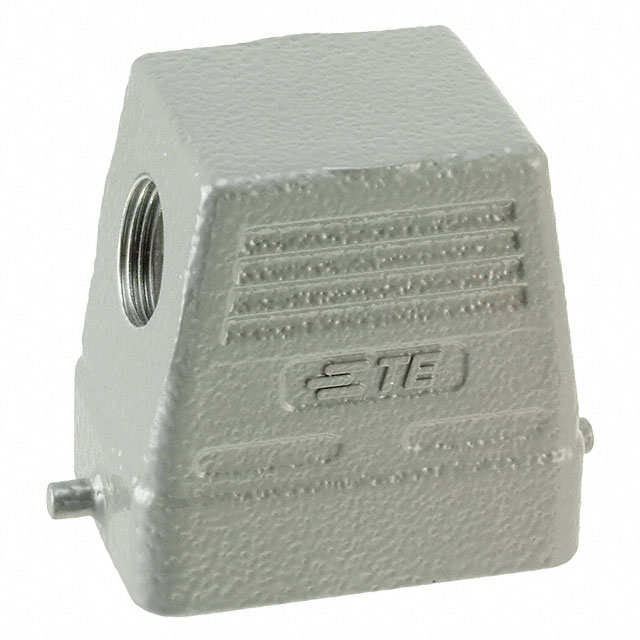

TE Connectivity AMP Connectors H6B-TS-M20	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	IP65 - Dust Tight Water Resistant	60 mm	2.362 in	1.693 "	2.362 in			Aluminum Alloy Die Cast	125 °C	-40 C	6B	Side Entry	60 mm	43 mm	M20
TE Connectivity AMP Connectors H6B-TS-PG13.5	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	IP65 - Dust Tight Water Resistant	60 mm	2.362 in	1.693 "	2.362 in			Aluminum Alloy Die Cast	125 °C	-40 C	6B	Side Entry	60 mm	43 mm	PG13.5

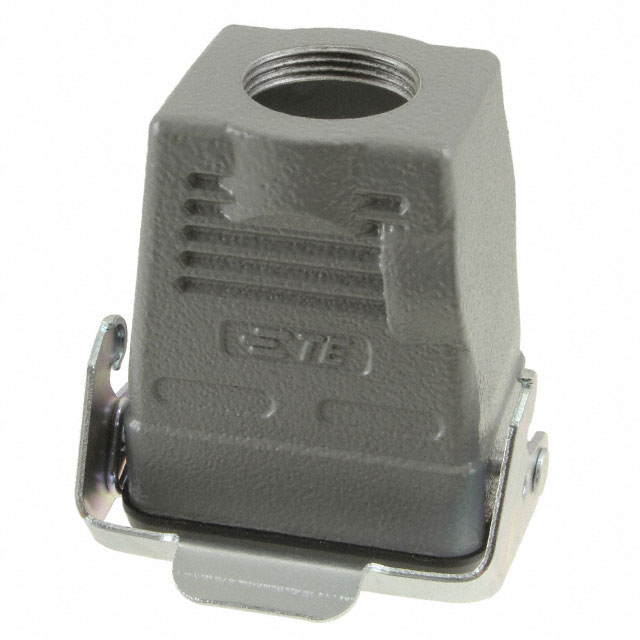

TE Connectivity AMP Connectors H6B-TBFH-PG21	Locking Clip (1) on Hood	Powder Coated	Hood - Coupling	Gray	IP65 - Dust Tight Water Resistant	60 mm	2.362 in	1.772 in	2.933 "	45 mm	74.5 mm	Aluminum Alloy Die Cast	125 °C	-40 C	6B	Bottom Entry Top or Bottom Entry			PG21	Cable to Cable

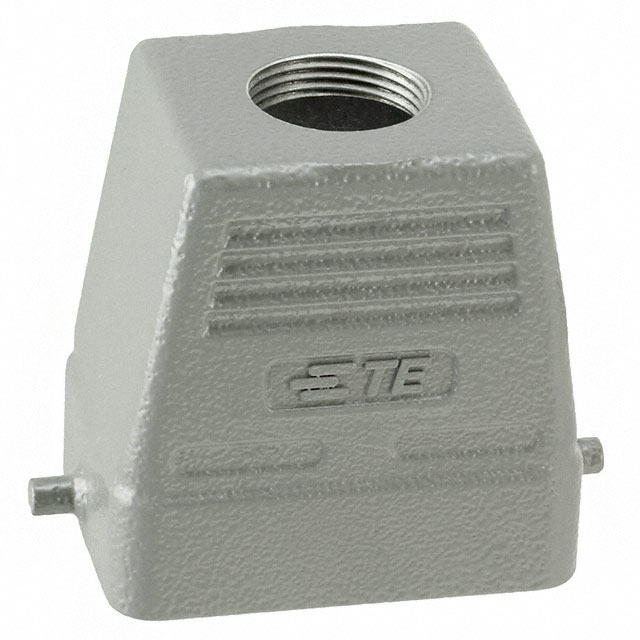

TE Connectivity AMP Connectors H6B-TG-PG16	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	IP65 - Dust Tight Water Resistant	60 mm	2.362 in	1.693 "	2.362 in			Aluminum Alloy Die Cast	125 °C	-40 C	6B	Top Entry	60 mm	43 mm	PG16
TE Connectivity AMP Connectors H6B-TG-M20	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	IP65 - Dust Tight Water Resistant	60 mm	2.362 in	1.693 "	2.362 in			Aluminum Alloy Die Cast	125 °C	-40 C	6B	Top Entry	60 mm	43 mm	M20
TE Connectivity AMP Connectors H6B-TSH-M32	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	IP65 - Dust Tight Water Resistant	60 mm	2.362 in	1.693 "	2.835 "	43 mm	72 mm	Aluminum Alloy Die Cast	125 °C	-40 C	6B	Side Entry			M32

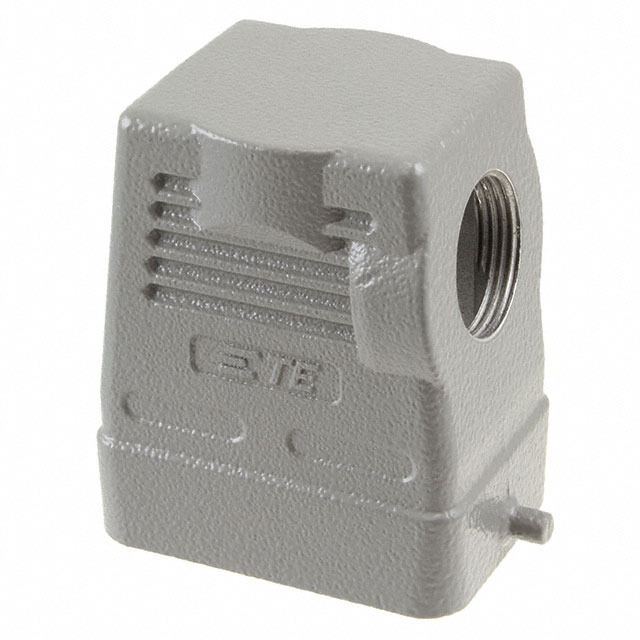

TE Connectivity AMP Connectors H6B-TSH-M25	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	IP65 - Dust Tight Water Resistant	60 mm	2.362 in	1.693 "	2.835 "	43 mm	72 mm	Aluminum Alloy Die Cast	125 °C	-40 C	6B	Side Entry			M25
TE Connectivity AMP Connectors H6B-AD	Locking Clip (1) on Base Bottom	Powder Coated	Base - Panel Mount	Gray	IP65 - Dust Tight Water Resistant	82 mm	3.228 in	1.799 in	1.173 "	45.7 mm	29.8 mm	Aluminum Alloy Die Cast	125 °C	-40 C	6B	Bottom Entry				Cover
TE Connectivity AMP Connectors H6B-TGH-PG21	Locking Clip (1) on Base Bottom	Powder Coated	Hood	Gray	IP65 - Dust Tight Water Resistant	60 mm	2.362 in	1.693 "	2.835 "	43 mm	72 mm	Aluminum Alloy Die Cast	125 °C	-40 C	6B	Top Entry			PG21
