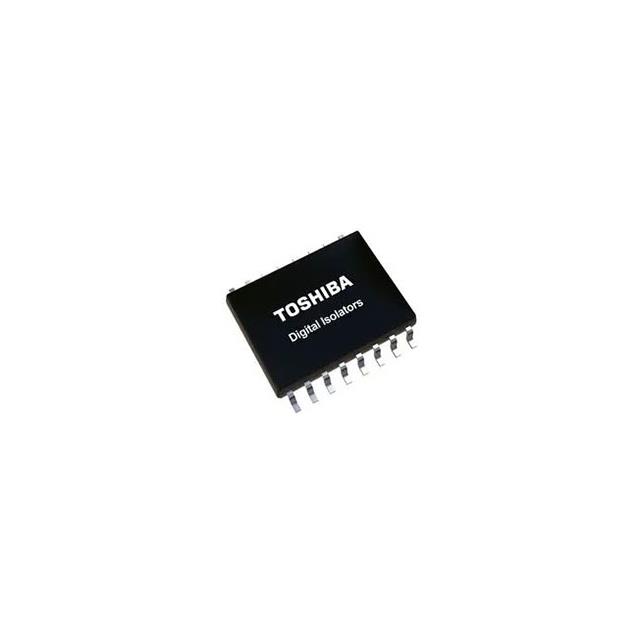

DCL541 Series

Catalog

4-CH (3:1) HIGH SPEED DIGITAL IS

Part	Number of Channels [custom]	Package / Case	Package / Case	Package / Case	Supplier Device Package	Data Rate	Operating Temperature [Min]	Operating Temperature [Max]	Type	Technology	Isolated Power	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Pulse Width Distortion (Max) [Max]	Channel Type	Propagation Delay tpLH / tpHL (Max)	Voltage - Supply [Min]	Voltage - Supply [Max]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Mounting Type	Common Mode Transient Immunity (Min) [Min]
Toshiba Semiconductor and Storage DCL541A01(T,E	4	16-SOIC	7.5 mm	0.295 "	16-SOIC	150 Mbps	-40 C	110 °C	General Purpose	Magnetic Coupling		0.9 ns	0.9 ns	2.8 ns	Unidirectional	18.3 ns 18.3 ns	2.25 V	5.5 V	3	1	Surface Mount	100 V/ns
Toshiba Semiconductor and Storage DCL541B01(T,E	4	16-SOIC	7.5 mm	0.295 "	16-SOIC	150 Mbps	-40 C	110 °C	General Purpose	Magnetic Coupling		0.9 ns	0.9 ns	2.8 ns	Unidirectional	18.3 ns 18.3 ns	2.25 V	5.5 V	3	1	Surface Mount	100 V/ns
