W1S12B-40 Series
Manufacturer: Rosenberger
Beta
⌘K

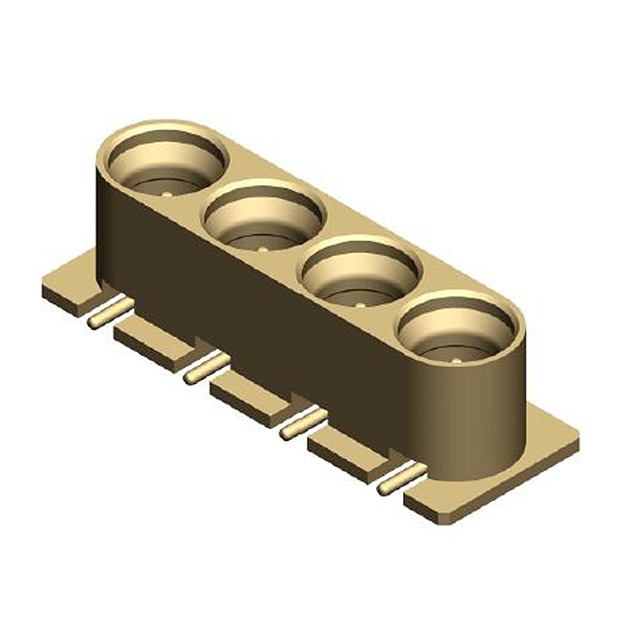

CONN PCB PLUG QUAD STR SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Features | Impedance | Connector Type | Body Material | Shield Termination | Center Contact Material | Housing Color | Number of Ports | Mounting Type | Frequency - Max [Max] | Body Finish | Connector Style | Center Contact Plating | Fastening Type | Contact Termination | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | -55 C | 165 °C | Full Detent | 50 Ohms | Plug Male Pin | Cobalt Iron Nickel | Solder | Cobalt Iron Nickel | Gold | 4 | Surface Mount | 100 GHz | Gold | WSMP | Gold | Snap-On | Solder | |
 Rosenberger | -55 C | 165 °C | Smooth Bore | 50 Ohms | Plug Male Pin | Cobalt Iron Nickel | Solder | Beryllium Copper | Gold | 4 | Surface Mount | 100 GHz | Gold | WSMP | Gold | Snap-On | Solder | 500 |
