0579-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Length - Overall	Length - Overall	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0579-0-15-80-21-14-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Gold	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0579-0-15-80-11-84-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Tin	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	2.54 µm	100 µin
Mill-Max Manufacturing Corp. 0579-0-15-80-21-84-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Tin	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	2.54 µm	100 µin
Mill-Max Manufacturing Corp. 0579-0-15-80-11-27-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Gold	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0579-0-15-80-11-14-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Gold	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	0.25 Ám	10 Áin
Mill-Max Manufacturing Corp. 0579-0-15-01-11-02-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Tin-Lead	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	2.54 µm	100 µin
Mill-Max Manufacturing Corp. 0579-0-15-15-21-27-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.022 in	0.38 mm	0.015 "		Gold	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	0.76 Ám	30 Áin	0.56 mm
Mill-Max Manufacturing Corp. 0579-0-15-80-21-27-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Gold	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	0.76 Ám	30 Áin

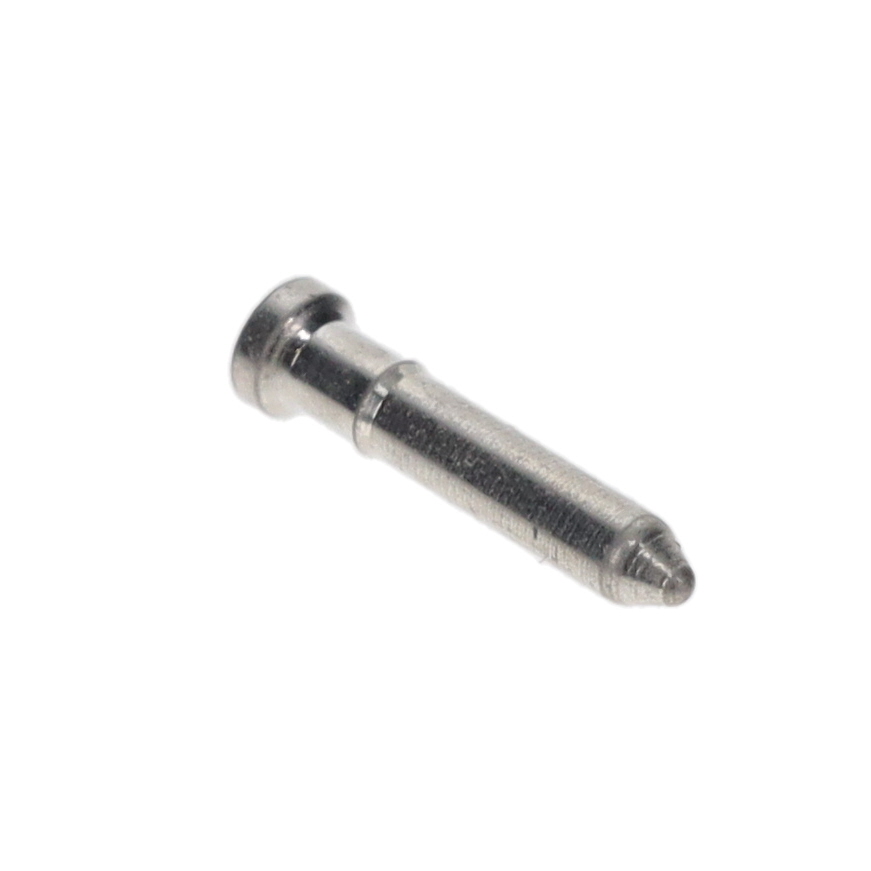

Mill-Max Manufacturing Corp. 0579-0-15-01-21-14-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.022 in	0.38 mm	0.015 "		Gold	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	0.25 Ám	10 Áin	0.56 mm
Mill-Max Manufacturing Corp. 0579-0-15-01-11-14-10-0	-55 C	125 °C	Press-Fit	1.4 mm	0.055 in	No Tail	5.72 mm	0.225 in	0.02 in	0.38 mm	0.015 "	0.51 mm	Gold	1.02 mm	0.04 in	Beryllium Copper	0.031 in	0.79 mm	0.25 Ám	10 Áin
