SS11H Series
Manufacturer: KEMET
Beta
⌘K

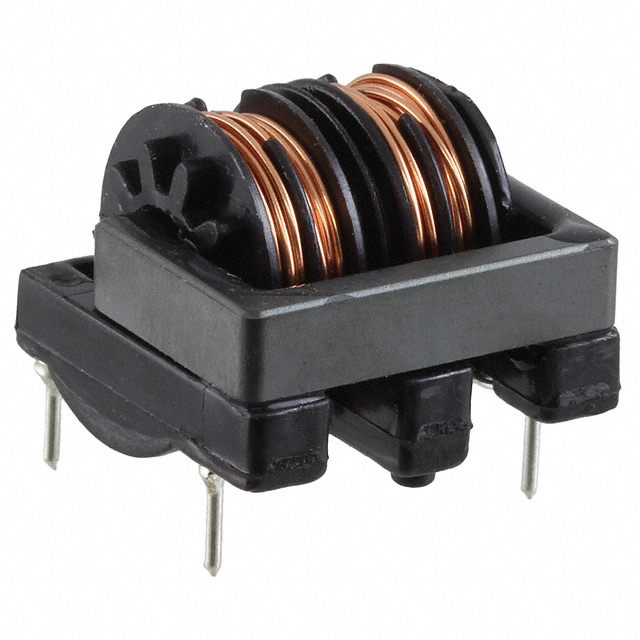

COMMON MODE CHOKES / FILTERS 250VAC 1.7A 3.6MH
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Voltage Rating - AC | Height (Max) [z] | Height (Max) [z] | Mounting Type | Number of Lines | Inductance @ Frequency | DC Resistance (DCR) (Max) [Max] | Filter Type | Current Rating (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 120 °C | -25 °C | 4 PC Pin Horizontal | 0.807 in | 20.5 mm | 21 mm | 0.827 " | 250 V | 17 mm | 0.669 in | Through Hole | 2 | 1 kHz 3.6 mH | 190 mOhm | Power Line | |
 KEMET | 120 °C | -25 °C | 4 PC Pin Horizontal | 0.807 in | 20.5 mm | 21 mm | 0.827 " | 250 V | 17 mm | 0.669 in | Through Hole | 2 | 9.3 mH | Power Line | 1 A |
