103149 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

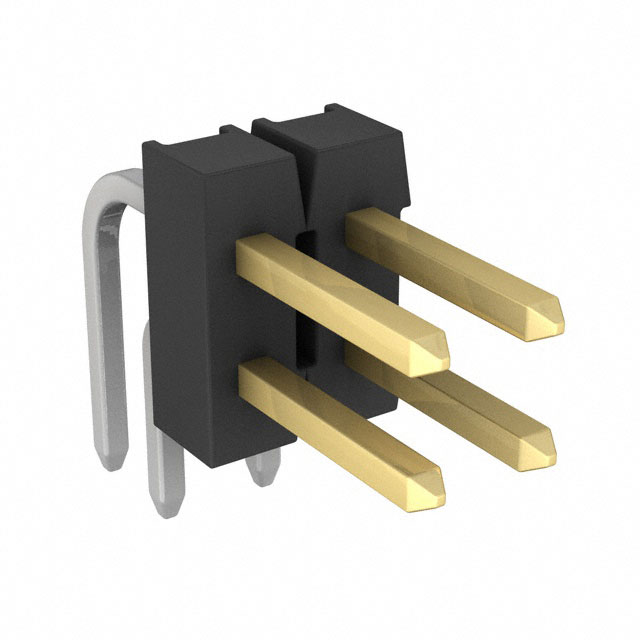

CONN HEADER R/A 64POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Color	Fastening Type	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Style	Termination	Contact Finish - Mating	Contact Finish - Post	Current Rating (Amps)
TE Connectivity AMP Connectors 4-103149-0-32	2.54 µm	100 µin	64	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-21	2.54 µm	100 µin	42	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-13	2.54 µm	100 µin	26	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-27	2.54 µm	100 µin	54	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-31	2.54 µm	100 µin	62	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-23	2.54 µm	100 µin	46	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-28	2.54 µm	100 µin	56	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-02	2.54 µm	100 µin	4	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-36	2.54 µm	100 µin	72	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
TE Connectivity AMP Connectors 4-103149-0-05	2.54 µm	100 µin	10	105 ░C	-65 ░C	UL94 V-0	Unshrouded	0.76 Ám	30 Áin	Header Breakaway	Male Pin	3.05 mm	0.12 in	Square	Copper Alloy	Thermoplastic	0.1 "	2.54 mm	Right Angle Through Hole	Black	Push-Pull	0.238 "	6.05 mm	2	0.23 in	5.84 mm	0.1 in	2.54 mm	All	Board to Board Cable	Solder	Gold	Tin-Lead	3 A
