9188A Series
Manufacturer: ALPHA WIRE
Beta
⌘K

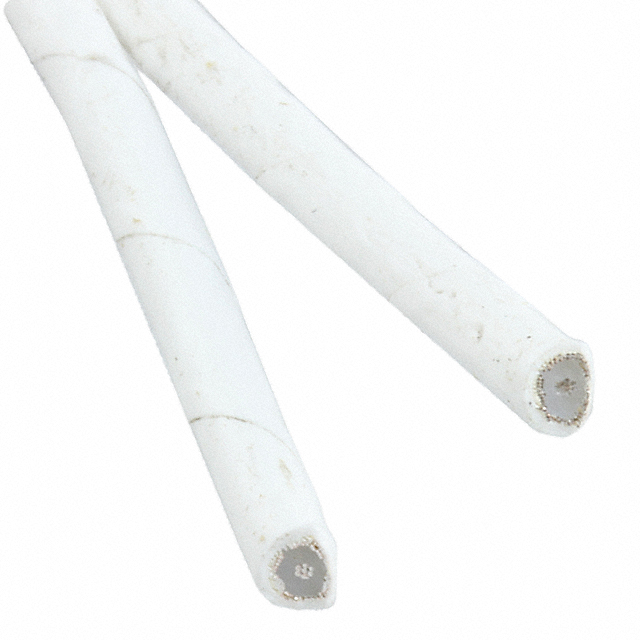

CABLE COAXIAL RG188A 25AWG 1000'
| Part | Shield Coverage | Cable Type | Impedance | Conductor Strand [diameter] | Conductor Strand [custom] | Shield Material | Cable Group | Shield Type | Length | Length | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Wire Gauge | VoP, Velocity of Propagation | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 94 % | Coaxial | 50 Ohms | 0.0067 in | 7 | Copper Silver Coated | RG-188A | Braid | 304.8 m | 1000 ft | Polytetrafluoroethylene (PTFE) | 2.67 mm | 0.105 in | 1.52 mm | 0.06 in | 25 AWG | 70 | Polytetrafluoroethylene (PTFE) | -55 °C | 200 °C | Steel Silver Coated |
