NUF9002 Series

Low Capacitance 10-Line EMI Filter with ESD Protection

Catalog

Low Capacitance 10-Line EMI Filter with ESD Protection

Part	Height [z]	Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Channels [custom]	Package / Case	Technology	Attenuation Value [custom]	Center / Cutoff Frequency	Resistance - Channel (Ohms)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Filter Order	ESD Protection	Type	Values	Mounting Type
ON Semiconductor NUF9002FCT1G	0.026 in	0.65 mm	85 °C	-40 °C	Data Lines for Mobile Devices	10	25-UFBGA FCBGA	RC (Pi)	-25 dB	110 MHz	100 Ohms	0.104 in	2.65 mm	0.104 in	2.65 mm	2nd		Low Pass	28 pF 100 Ohms	Surface Mount
ON Semiconductor NUF9002FCT1	0.026 in	0.65 mm	85 °C	-40 °C	Data Lines for Mobile Devices	10	25-UFBGA FCBGA	RC (Pi)	-25 dB	110 MHz	100 Ohms	0.104 in	2.65 mm	0.104 in	2.65 mm	2nd		Low Pass	28 pF 100 Ohms	Surface Mount

Catalog

Low Capacitance 10-Line EMI Filter with ESD Protection

Key Features

• EMI Filtering and ESD Protection

• Integration of 50 Discretes

• Provides Protection for IEC61000-4-2(Level 4) 8.0 kV (Contact)

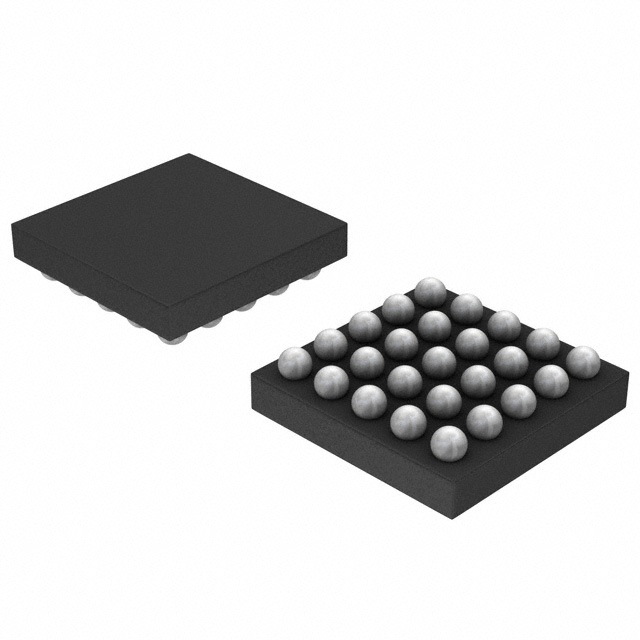

• Flip-Chip Package

• Moisture Sensitivity Level 1

• ESD Rating: Machine Model=C; Human Body Model=3B

• Pb-Free Package is Available

Description

This device is a 10 line EMI filter array for wireless applications. Greater than -25 dB attenuation is obtained at frequencies from 900 MHz to 3.0 GHz. ESD protection is provided across all capacitors.
