5100UH Series
Manufacturer: Belden Inc.
Beta
⌘K

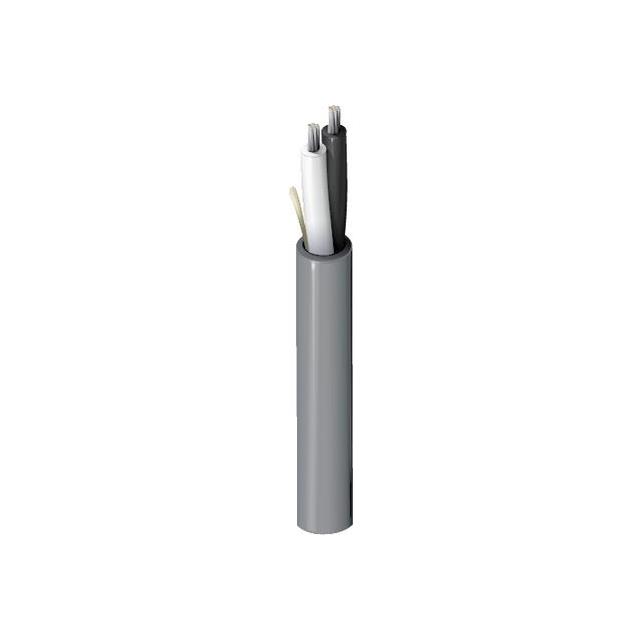

CABLE 2COND 14AWG GRAY
| Part | Usage | Ratings | Cable Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Conductor Material | Jacket Color | Features | Length | Length | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Security Sound | UL Style CMR | Multi-Conductor | 300 VDC | 0.017 " | 0.432 mm | 2 | Copper Tinned | Gray | Rip Cord | 304.8 m | 1000 ft | 14.5 AWG | 0.23 in | 5.84 mm | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser |
Belden Inc. | Security Sound | UL Style CMR | Multi-Conductor | 300 VDC | 0.017 " | 0.432 mm | 2 | Copper Tinned | Gray | Rip Cord | 304.8 m | 1000 ft | 14.5 AWG | 0.23 in | 5.84 mm | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser |
Belden Inc. | Security Sound | UL Style CMR | Multi-Conductor | 300 VDC | 0.017 " | 0.432 mm | 2 | Copper Tinned | Gray | Rip Cord | 152.4 m | 500 ft | 14.5 AWG | 0.23 in | 5.84 mm | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser |
