AWHW 16 Series

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 16 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE

Part	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Features	Insulation Color	Style	Shrouding	Connector Type	Fastening Type	Mounting Type	Contact Type	Material Flammability Rating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Insulation Material	Current Rating (Amps)	Number of Positions Loaded	Termination	Contact Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Finish - Mating	Contact Shape	Contact Finish - Post	Contact Length - Post	Contact Length - Post

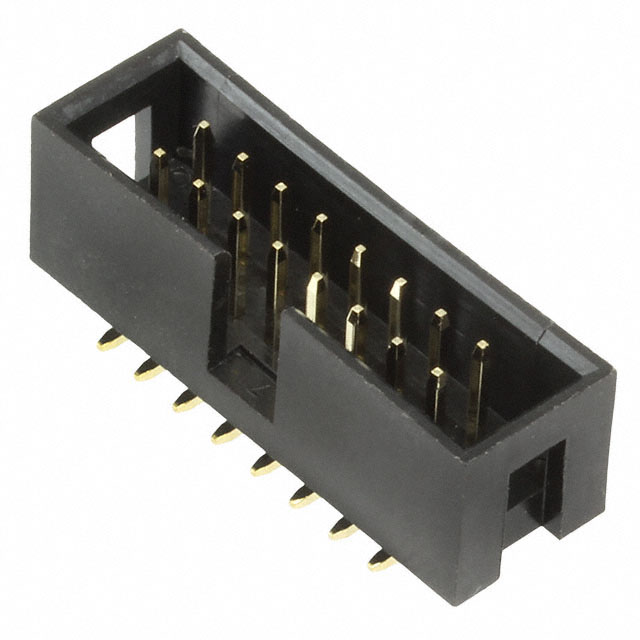

Assmann WSW Components AWHW 16G-SMD	5.9 mm	0.232 in	0.1 in	2.54 mm	16	Keying Slot Pick and Place	Black	Board to Cable/Wire	Shrouded - 4 Wall	Header	Push-Pull	Surface Mount	Male Pin	UL94 V-0	Flash	0.354 in	9 mm	Glass Filled Nylon 9T Polyamide (PA9T)	3 A	All	Solder	Brass	0.1 "	2.54 mm	-40 C	105 ░C	2	Gold	Square
Assmann WSW Components AWHW 16G-SMD-R	5.9 mm	0.232 in	0.1 in	2.54 mm	16	Keying Slot Pick and Place	Black	Board to Cable/Wire	Shrouded - 4 Wall	Header	Push-Pull	Surface Mount	Male Pin	UL94 V-0	Flash	0.354 in	9 mm	Glass Filled Nylon 9T Polyamide (PA9T)	3 A	All	Solder	Brass	0.1 "	2.54 mm	-40 C	105 ░C	2	Gold	Square

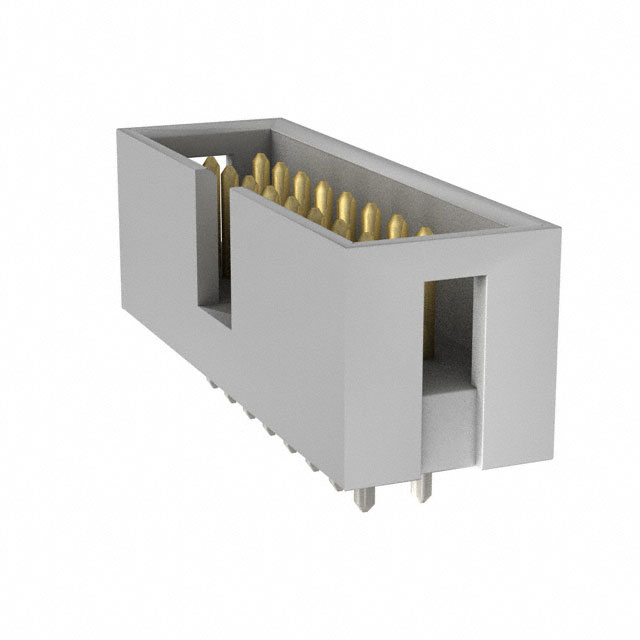

Assmann WSW Components AWHW 16G-0202-T	5.7 mm	0.224 in	0.1 in	2.54 mm	16	Keying Slot	Gray	Board to Cable/Wire	Shrouded - 4 Wall	Header	Push-Pull	Through Hole	Male Pin	UL94 V-0	Flash	0.354 in	9 mm	Polybutylene Terephthalate (PBT) Glass Filled	3 A	All	Solder	Brass	0.1 "	2.54 mm	-40 C	105 ░C	2	Gold	Square	Tin	0.13 "	3.3 mm
Assmann WSW Components AWHW16-G-SMD-R	5.9 mm	0.232 in	0.1 in	2.54 mm	16	Keying Slot Pick and Place	Black	Board to Cable/Wire	Shrouded - 4 Wall	Header	Push-Pull	Surface Mount	Male Pin	UL94 V-0	Flash	0.354 in	9 mm	Glass Filled Nylon 9T Polyamide (PA9T)	3 A	All	Solder	Brass	0.1 "	2.54 mm	-40 C	105 ░C	2	Gold	Square
