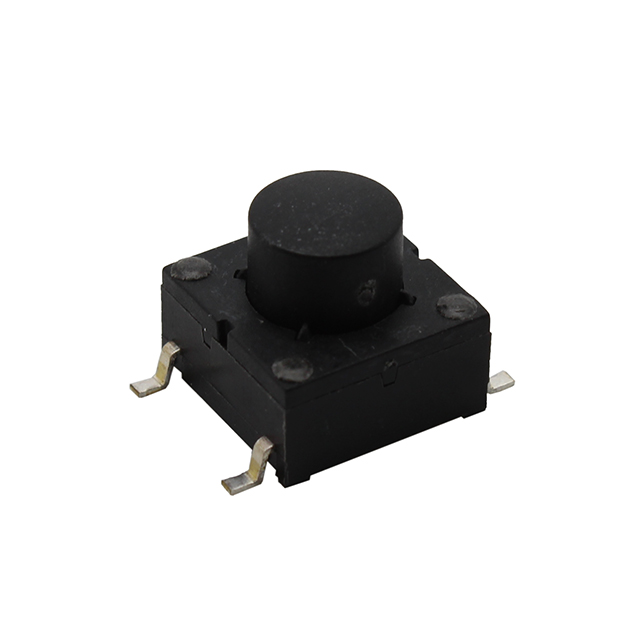

ME029 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 24V
| Part | Switch Travel | Actuator Material | Mounting Type | Actuator Type | Actuator Height off PCB, Vertical [z] | Illumination | Actuator Orientation | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Ingress Protection | Switch Function | Termination Style | Outline [x] | Outline [y] | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 1 mm | Polyamide (PA6T) Nylon 6T | Surface Mount | Standard | 9.5 mm | Non-Illuminated | Top Actuated | 350 gf | 85 °C | -40 C | SPST-NO | IP67 - Dust Tight Waterproof | Off-Mom | SMD (SMT) Tab | 10 mm | 10 mm | 0.05 A 24 VDC |
